Direct answer
A modular telecom equipment shelter is a coordinated equipment room, not simply a larger cabinet. The manufacturer needs the rack and equipment layout, floor loads, power and battery zones, cooling architecture, cable entries, fire and monitoring interfaces, technician clearances and future expansion plan. Site information must also cover transport limits, lifting, foundation, module joints, drainage and final assembly access. Separate factory-completed work from site-completed work so sealing, wiring, testing and responsibility remain clear. Drawings should identify structural and equipment interfaces without implying that enclosure supply replaces local civil, electrical or safety engineering. FAT can verify the factory-built configuration, while site acceptance must check assembly, services, alarms and operation after transport and installation.
Within the broader Outdoor Cabinet Applications workflow, this article focuses on modular telecom equipment shelter manufacturer: prepare the equipment, structural interface, transport and commissioning inputs for a prefabricated telecom shelter. Confirm equipment layout and floor loading and the evidence for the offered product before final engineering approval.
Scope boundary: This page focuses on manufacturer inputs and factory/site work split for a modular shelter. Separate comparison guides cover when a cabinet, shelter or containerized station is the appropriate site form.
Information the manufacturer needs before layout work
Prepare the equipment, structural interface, transport and commissioning inputs for a prefabricated telecom shelter. Start with the operating requirement and installation boundary, then separate system requirements from product claims so each supplier knows which evidence must accompany the offered configuration.

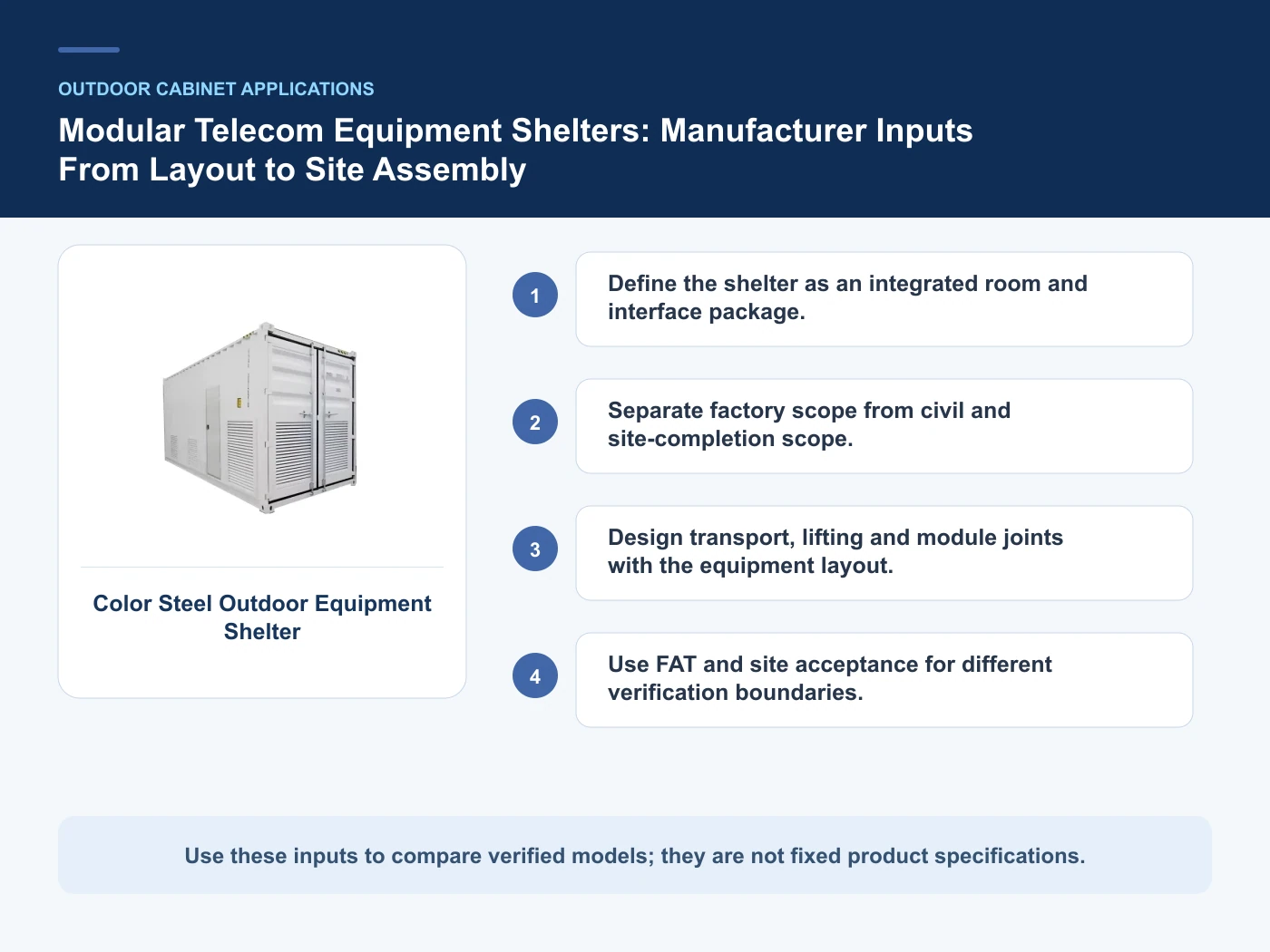

- Define the shelter as an integrated room and interface package.
- Separate factory scope from civil and site-completion scope.
- Design transport, lifting and module joints with the equipment layout.
Define the shelter as an integrated room and interface package
Capture Equipment layout and floor loading, then use Factory scope as a practical comparison point: Structure, internal services and installed equipment. Before approval, verify this point: Define completion and FAT boundary.
Separate factory scope from civil and site-completion scope
Capture Power, battery and cooling architecture, then use Site interface as a practical comparison point: Foundation, utilities, drainage and access. Before approval, verify this point: Assign civil and installation responsibility.
Design transport, lifting and module joints with the equipment layout
Capture Cable and utility interfaces, then use Commissioning as a practical comparison point: Joints, services, alarms and operation. Before approval, verify this point: Verify after transport and assembly.
Relevant products from our communications portfolio
The products below connect the modular telecom equipment shelter manufacturer decision to real catalogue families and verified site photography. They are starting points, not a claim that every configuration described here is a standard stock item; confirm model, interface, rating, drawing and testing scope with the project team.
- Insulated Steel Outdoor Equipment Shelter — use this product page as a configuration reference when you define the shelter as an integrated room and interface package. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Armored Equipment Shelter — use this product page as a configuration reference when you separate factory scope from civil and site-completion scope. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Outdoor Integrated Aesthetic Equipment Shelter — use this product page as a configuration reference when you design transport, lifting and module joints with the equipment layout. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Urban Outdoor Aesthetic Equipment Shelter — use this product page as a configuration reference when you use FAT and site acceptance for different verification boundaries. Confirm the offered model, interfaces, drawings and available evidence before quotation.
For adjacent configurations, browse Outdoor Cabinets & Site Infrastructure and compare those options against the modular telecom equipment shelter manufacturer inputs above, including equipment layout and floor loading.
Factory and site responsibility boundaries
This table connects edge, battery, emergency, non-metallic, shelter and integrated-site applications with installation-specific trade-offs to the decision on modular telecom equipment shelter manufacturer. It is a decision aid rather than a universal performance table: exact capacity, environmental class, electrical or optical limits and certifications must come from the selected model, applicable project documents and verifiable test evidence.
| Option or input | When it fits | What must be verified |
|---|---|---|
| Factory scope | Structure, internal services and installed equipment | Define completion and FAT boundary |
| Site interface | Foundation, utilities, drainage and access | Assign civil and installation responsibility |
Reference point: IEC 62208:2023 — Empty enclosures for low-voltage switchgear and controlgear assemblies and ETSI EN 300 019-1-4: Environmental conditions and environmental tests for telecommunications equipment — stationary use at non-weatherprotected locations frame the terminology or method used for this modular telecom equipment shelter manufacturer comparison. They do not approve a product configuration; apply the edition named by the contract and local authority.
From equipment schedule to site-ready shelter
- Step 1: Freeze the equipment-room layout. Record Equipment layout and floor loading as an explicit input. Define completion and FAT boundary.
- Step 2: Define factory and site responsibility boundaries. Record Power, battery and cooling architecture as an explicit input. Assign civil and installation responsibility.
- Step 3: Coordinate transport, foundation and module interfaces. Record Cable and utility interfaces as an explicit input. Verify after transport and assembly.
Common mistakes to avoid
- Treating a shelter as an empty weather cover.
- Leaving module joints and field sealing outside the scope.
What to include in the RFQ or design input
For modular telecom equipment shelter manufacturer, a complete request reduces back-and-forth and prevents a catalogue image from being mistaken for a verified configuration. Record the following fields, identify which values are mandatory or provisional and attach route, interface or layout drawings where relevant.
- Equipment layout and floor loading
- Power, battery and cooling architecture
- Cable and utility interfaces
- Shelter dimensions and transport limits
- Foundation and drainage interface
Questions engineers and buyers ask
How should factory scope be evaluated for modular telecom equipment shelter manufacturer?
Use structure, internal services and installed equipment as the operating context, record equipment layout and floor loading, and verify define completion and fat boundary for the exact offered configuration.
Sources and standards
Use these primary references to check the engineering boundary for modular telecom equipment shelter manufacturer. Product compliance still requires model-specific drawings, declarations and test evidence for the configured system.
- IEC 62208:2023 — Empty enclosures for low-voltage switchgear and controlgear assemblies (2023, Ed. 3). Use it to verify the terminology and scope relevant to modular telecom equipment shelter manufacturer; the source does not certify a specific offered product.
- ETSI EN 300 019-1-4: Environmental conditions and environmental tests for telecommunications equipment — stationary use at non-weatherprotected locations (V3.1.1, 2026). Use it to verify the terminology and scope relevant to modular telecom equipment shelter manufacturer; the source does not certify a specific offered product.
- ETSI ETS 300 119-2: Engineering requirements for racks and cabinets (Ed.1, reviewed 2026-10-16). Use it to verify the terminology and scope relevant to modular telecom equipment shelter manufacturer; the source does not certify a specific offered product.
- ETSI TR 102 489: Thermal management guidance for telecommunications equipment (V1.3.1, 06/2013). Use it to verify the terminology and scope relevant to modular telecom equipment shelter manufacturer; the source does not certify a specific offered product.
Source review: Links and cited editions for modular telecom equipment shelter manufacturer were checked on 2026-10-16. Confirm the edition adopted by the project contract and the authority having jurisdiction.
Related guidance
5G Edge Cabinet Design: Radio, Transport, Power and Cooling in a Small Footprint • Outdoor Telecom Cabinet vs Equipment Shelter • Communication Container Station vs Equipment Shelter
Prepare a modular telecom equipment shelter manufacturer configuration for review
Share equipment layout and floor loading, power, battery and cooling architecture, cable and utility interfaces plus the intended installation and order quantity. We will map those inputs to a product family and a reviewable project configuration.
