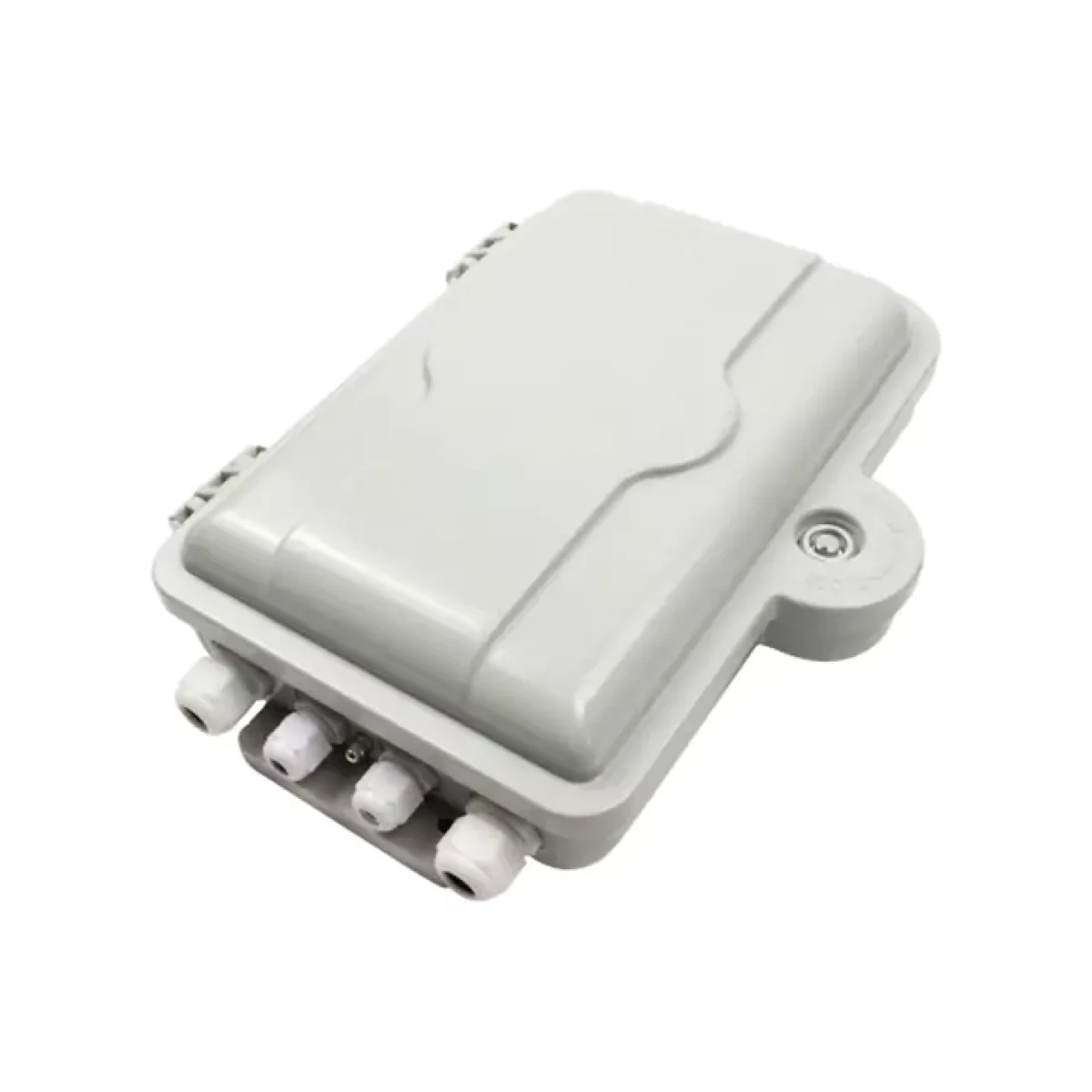

16-Core SMC Fiber Distribution Box organizes cable fixing, splicing, termination and protected distribution for access-network handoff points.
The recorded dimensions are 310 × 240 × 85 mm, with 1.65 kg mass, two inlets/two outlets, sixteen SC/FC positions and IP55 protection.
The current local record identifies this 16-core SMC box as HJ-GF-KCW-16A. It provides a compact cable-to-pigtail handoff using a flip-type bracket and cable-fixing parts.
For replacements, compare the model and accessory arrangement rather than relying on an identical product title.
Check the existing mounting centers and internal fiber route. One 12-core tray is listed, so a fully spliced sixteen-port order needs a resolved tray drawing.
For replacement 16A units, Huijue Group can examine physical samples or drawings for OEM and private-label manufacture. Interface feasibility, mold tooling, tests, requested quantities and delivery scope must be confirmed.
Send existing-box photos, model marking, mounting dimensions, cable sizes and desired accessory population.
| Model | Product Dimensions | Weight | Material | Cable Entry Holes |
| HJ-GF-KCW-16A | 310*240*85mm | 1.65kg | SMC Composite Material | 2 Inlets & 2 Outlets |
| Product Configuration List | |||||
| Serial No. | Name | Specification | Quantity | Unit | Remarks |
| 1 | Cabinet Body | 310*240*85mm | 1 | Set | Including internal structural components |
| 2 | Bracket | Flip-type | 1 | Set | |
| 3 | Adapter | SC or FC | 16 | Piece | |
| 4 | Pigtail | Single-core SC | 16 | Piece | Optional (0.9mm pigtail, 2.0mm pigtail, drop cable optional) |
| 5 | Fiber Splicing Tray Device | 12-core | 1 | Block | Maximum 1 block can be configured |
| 6 | Heat Shrinkable Tube | Single-core heat shrinkable tube | 16 | Piece | |
| 7 | Fiber Protection Sleeve | 0.5 | Meter | ||
| 8 | Accessories | Installation accessories | 1 | Set | Standard configuration |
Replacement and expansion of small SMC distribution points using a verified 16A interface.
Assess the existing cable-entry condition and support exposure when selecting replacement seals and hardware.
Buyer Questions
Answers specific to 16-Core SMC Fiber Distribution Box selection, configuration and purchasing.
Check mounting centers, load support and working clearance against the replacement drawing. External dimensions alone are insufficient.
The sixteen adapter positions exceed the single listed 12-core tray value. Confirm the internal assembly for your splice count.
