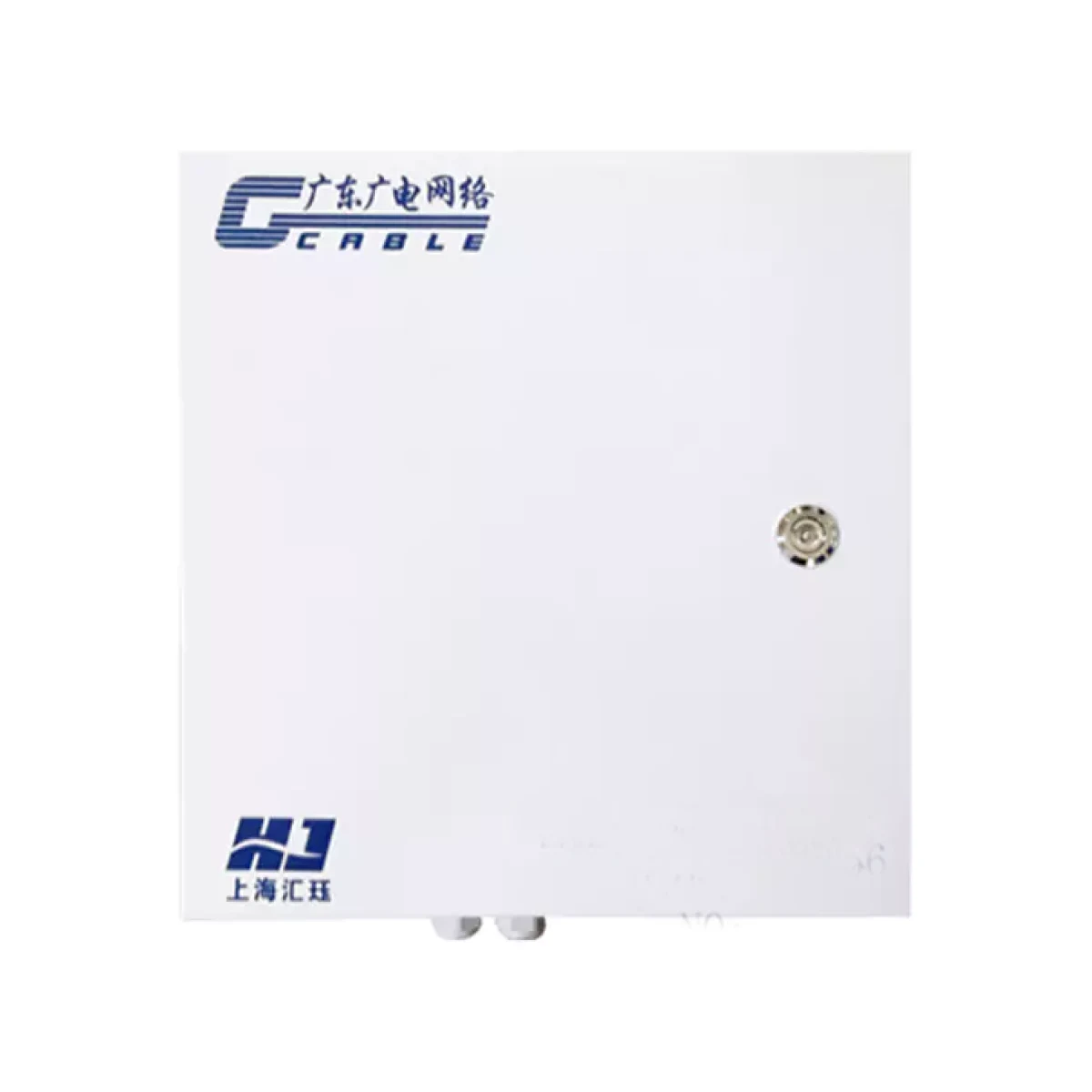

Metal Optical Splitter Box organizes cable fixing, splicing, termination and protected distribution for access-network handoff points.
This broadly named metal splitter box is identified locally as the 32-core HJ-GFS-KJW-32C. It organizes plug-in distribution and feeder splicing inside a hinged-access sheet-metal enclosure.
Four reserved slots describe mechanical accommodation, not a universal active-output count.
Check the two-inlet/one-hole entry pattern and ordered sheet gauge. Ensure that populated module connectors remain reachable after pigtail routing.
Huijue Group can examine OEM 32C requirements, private-label identifiers and samples or drawings for revised supports. Feasibility, fabrication tooling, interface tests, quantity and delivery scope need confirmation.
Provide populated slots, ratio schedule, module package, cable routes and adapter polish.
| Model | Product Dimensions | Weight | Material | Cable Entry Holes |
| HJ-GFS-KJW-32C | 350*340*110mm | 3.2~4.3kg | Galvanized Steel Plate 1.0~1.2mm | 2 Inlets & 1 Hole |
| Product Configuration List | |||||
| Serial No. | Name | Specification | Quantity | Unit | Remarks |
| 1 | Cabinet Body | 350*340*110mm | 1 | Set | Including internal structural components |
| 2 | Splitter Bracket | Flip-type | 1 | Set | 4 slots reserved |
| 3 | Optical Splitter | Plug-in type SC | * | Set | Optional accessory (1:4, 1:8, 1:16, 1:32) Maximum quantity: 4 slots |
| 4 | Pigtail | Single-core SC | * | Piece | Optional (0.9mm pigtail, 2.0mm pigtail, drop cable optional) |
| 5 | Fiber Splicing Tray Device | 12-core | 2 | Block | Maximum 2 blocks can be configured |
| 6 | Heat Shrinkable Tube | Single-core heat shrinkable tube | 24 | Piece | |
| 7 | Fiber Protection Sleeve | 1 | Meter | ||
| 8 | Accessories | Installation accessories | 1 | Set | Standard configuration |
Access splitter aggregation requiring a metal body and a resolved four-position module plan.
Review coating and seals for the installation; IP55 concerns the complete fitted enclosure.
Buyer Questions
Answers specific to Metal Optical Splitter Box selection, configuration and purchasing.
Do not infer aggregate capacity from slot count and ratio options. Approve the populated optical and mechanical layout.
It is described as available. Include it explicitly if required by the maintenance procedure.
Use the deployment context to narrow the configuration before comparing dimensions, capacities and options.
