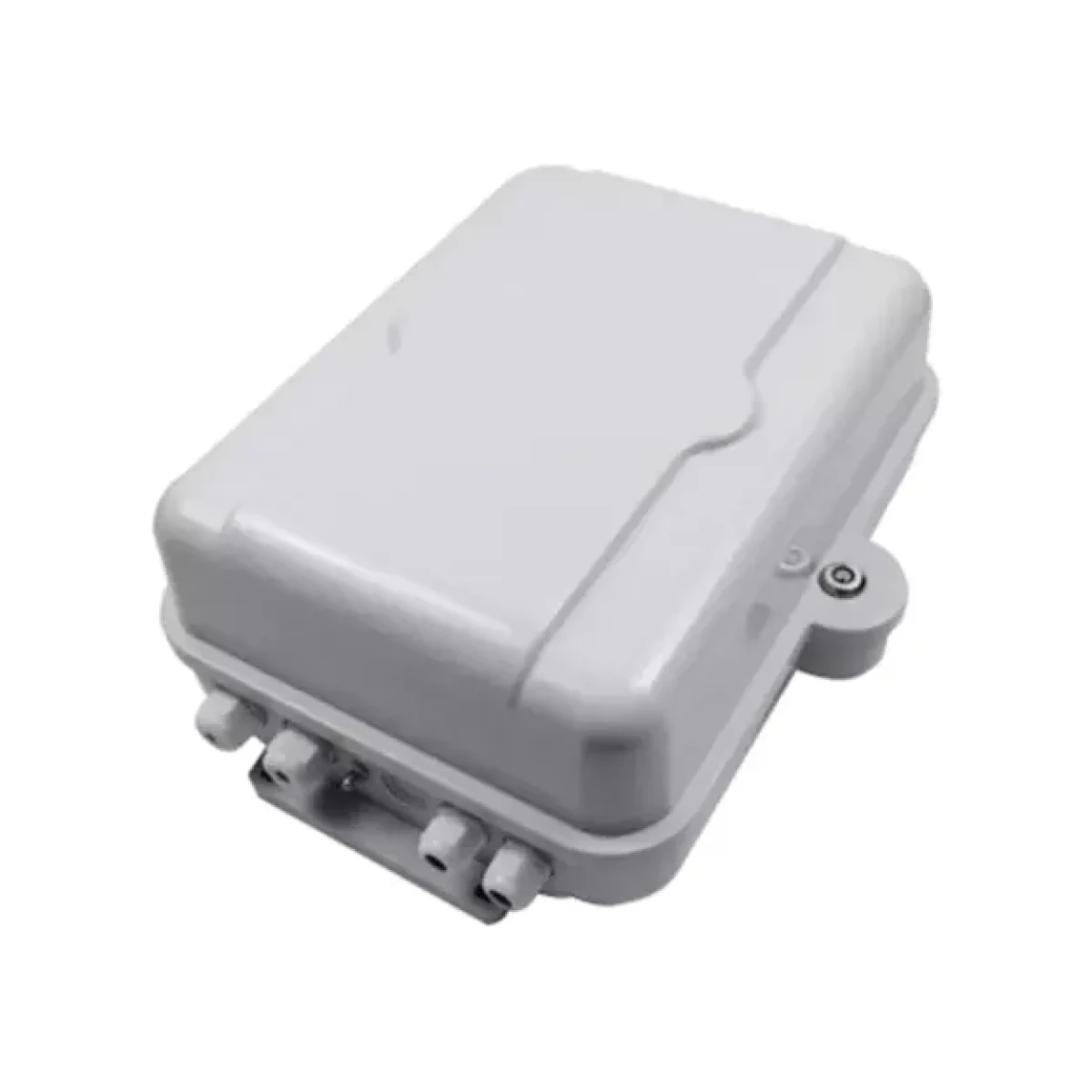

SMC Optical Splitter Box organizes cable fixing, splicing, termination and protected distribution for access-network handoff points.
The SMC HJ-GFS-KCW-32C box combines splitter accommodation with protected feeder splicing. Its deeper composite enclosure provides a specific mounting envelope for checking module access and outgoing fiber routes.
Confirm the selected module population and up to two 12-core trays. Review two 8–15 mm cable seals and show pigtail paths on the internal drawing.
For 32C SMC procurement, Huijue Group can assess OEM and private-label builds from drawings or reference samples. Composite tooling, feasible layouts, tests, quantities and delivery scope need engineering confirmation.
Send used slots, module sizes, optical ratios, feeder diameters and required splice accessories.
| Model | Product Dimensions | Weight | Material | Cable Entry Holes |
| HJ-GFS-KCW-32B | 415*330*130mm | 3.6kg | SMC Composite Material | 2 Inlets & 2 Outlets |
| Product Configuration List | |||||
| Serial No. | Name | Specification | Quantity | Unit | Remarks |
| 1 | Cabinet Body | 415*330*130mm | 1 | Set | Including internal structural components |
| 2 | Splitter Bracket | Flip-type | 1 | Set | 4 slots reserved |
| 3 | Optical Splitter | Plug-in type SC | * | Set | Optional accessory (1:4, 1:8, 1:16, 1:32) Maximum quantity: 4 slots |
| 4 | Pigtail | Single-core SC | * | Piece | Optional (0.9mm pigtail, 2.0mm pigtail, drop cable optional) |
| 5 | Fiber Splicing Tray Device | 12-core | 2 | Block | Maximum 2 blocks can be configured |
| 6 | Heat Shrinkable Tube | Single-core heat shrinkable tube | 12 | Piece | |
| 7 | Fiber Protection Sleeve | 1 | Meter | ||
| 8 | Accessories | Installation accessories | 1 | Set | Standard configuration |
Composite-enclosed access distribution combining selected plug-in splitters and spliced feeder fibers.
Agree support exposure and spare-entry plugs for the source-listed IP55 assembly.
Buyer Questions
Answers specific to SMC Optical Splitter Box selection, configuration and purchasing.
No. It belongs to this 32C record. Verify the exact enclosure when comparing mounting space.
Population is selectable. Specify the installed quantities and ratios rather than equating reserved slots with supplied splitters.
State the necessary splices and confirm tray quantity, covers and sleeves in the final equipment list.
Use the deployment context to narrow the configuration before comparing dimensions, capacities and options.
