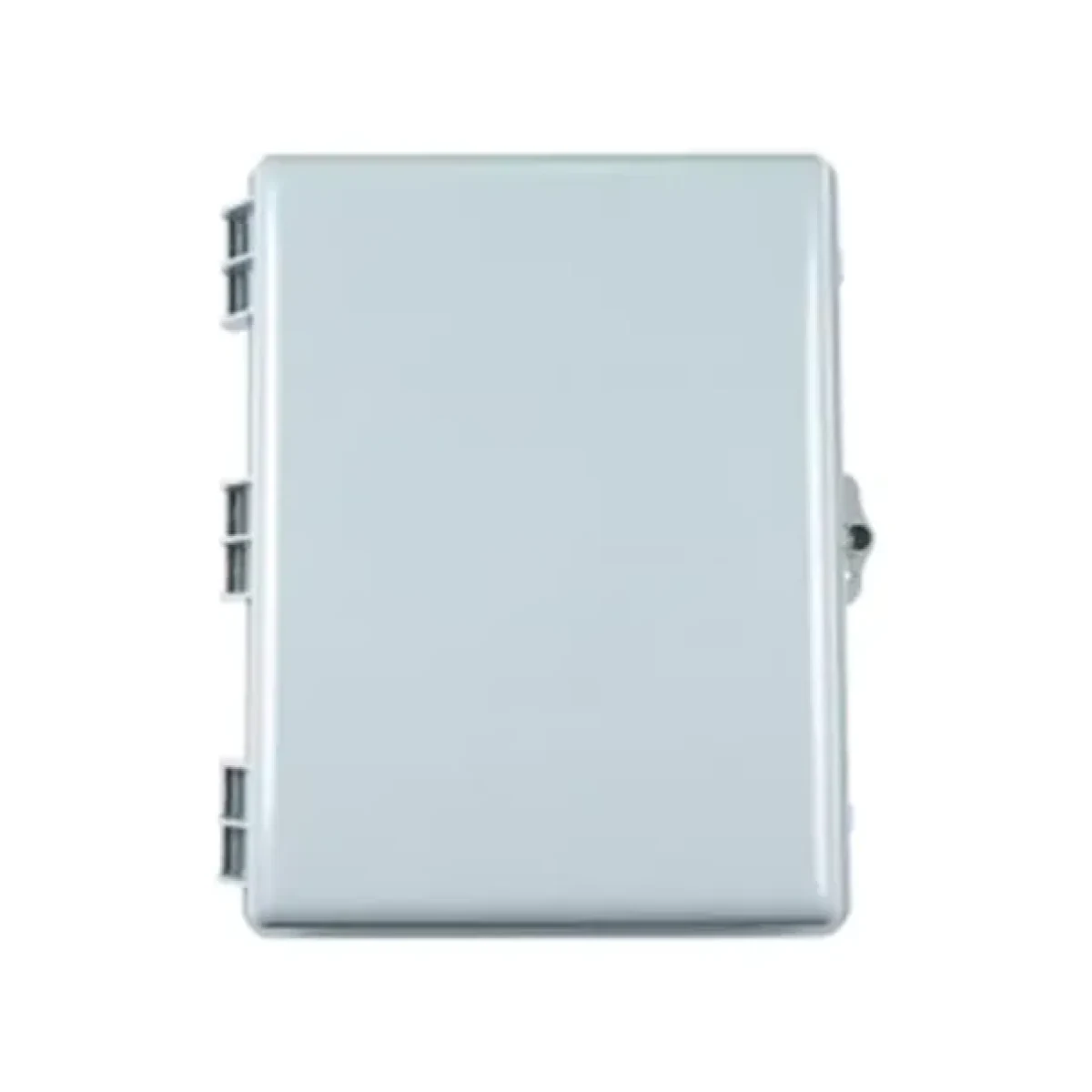

HJ-GF-KSW-48B plastic fiber distribution box with 48 SC/FC adapter positions, four 12-core splice trays and a 420 × 320 × 125 mm enclosure.
This forty-eight-core plastic box is the HJ-GF-KSW-48B variant. Four groups of twelve splices support a planned distribution handoff, with working and reserve fibers assigned by tray.
The suffix matters: common capacity does not establish dimensional or mounting interchangeability with 48C.
Match the described two to four 8–12 mm cables to the actual entry drawing. Agree initial adapter population and retained fiber storage.
Huijue Group can assess OEM 48B manufacture, private labels and sample-based matching or drawing-based revisions. Mold compatibility, tooling, tests, quantities and delivery scope require engineering approval.
Supply 48B mounting dimensions, feeder construction, tray map, connector details and reserve-port plan.
| Model | Product Dimensions | Weight | Material | Cable Entry Holes |
| HJ-GF-KSW-48B | 420*320*125mm | 2.6kg | PC+ABS Plastic | 2 Inlets & 2 Outlets |
| Product Configuration List | |||||
| Serial No. | Name | Specification | Quantity | Unit | Remarks |
| 1 | Cabinet Body | 420*320*125mm | 1 | Set | Including internal structural components |
| 2 | Bracket | Flip-panel type | 1 | Set | |
| 3 | Adapter | SC or FC | 48 | Piece | |
| 4 | Pigtail | Single-core SC | 48 | Piece | Optional (0.9mm pigtail, 2.0mm pigtail, drop cable optional) |
| 5 | Fiber Splicing Tray Device | 12-core | 4 | Block | |
| 6 | Heat Shrinkable Tube | Single-core heat shrinkable tube | 48 | Piece | |
| 7 | Fiber Protection Sleeve | 3 | Meter | ||
| 8 | Accessories | Installation accessories | 1 | Set | Standard configuration |
Forty-eight-fiber local distribution where the specific 48B footprint and internal layout suit the site.
Verify support and entry sealing for the delivered assembly rather than relying on the box title.
Buyer Questions
Answers specific to 48-Core Plastic Fiber Distribution Box — HJ-GF-KSW-48B selection, configuration and purchasing.
This record gives 420 × 320 × 125 mm. Compare exact model drawings before replacing another forty-eight-core box.
Both are options, but confirm bracket fit, connector projections and matching pigtails for the populated version.
