Telecom base stations
House communications, power and battery equipment in a serviceable outdoor enclosure.
A project-configured floor-standing cabinet combining communications-equipment space with selectable power, renewable inputs, batteries, cooling and monitoring within a single-compartment outdoor arrangement.

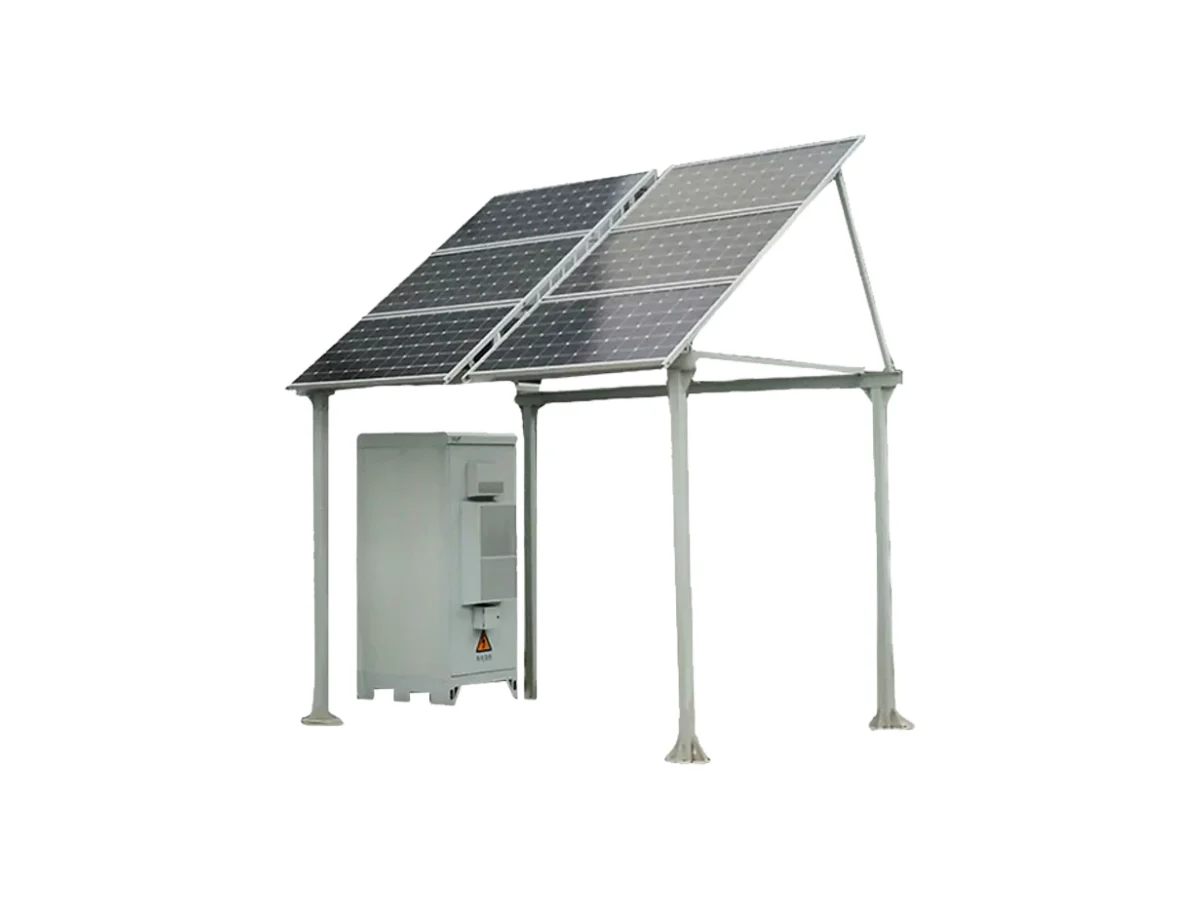

The Outdoor Communication Single-Compartment Cabinet, HJ-SG-D01, is an integration platform rather than one fixed bill of materials. It can combine communications equipment with rectification, storage, renewable-energy interfaces and monitoring according to the site requirements.
A single-compartment arrangement makes equipment and service-space planning especially important. Cabinet dimensions and remaining rack space must come from the approved configuration drawing after the selected power and thermal components are allocated.
Prepare an equipment schedule with continuous and peak load, AC/DC interfaces and battery autonomy. Identify whether PV, wind or generator connections are needed, then select cooling from the total heat load. Specify sensors and control behavior by function and interface rather than assuming every option is fitted.
Huijue Group can review OEM D01 integration, private-label cabinets and layouts developed from samples or customer drawings. Feasibility, tooling, system and enclosure tests, order quantity and delivery scope require confirmation for the selected package.
Send equipment and rack requirements, load profile, battery autonomy, source inputs, cooling conditions, monitoring functions and cabinet-size constraints.
| Model | HJ-SG-D01 |
|---|---|
| Installation | Floor-standing |
| Protection | IP55 |
| Salt-spray resistance | Up to 500 hours |
| Cooling | Heat exchanger or air conditioner; configuration-dependent |
| Rectifier module | 50 A modules; configuration-dependent |
| Cabinet dimensions | Project-specific; confirm from approved configuration drawing |
The source lists IP55 and up to 500 hours of salt-spray resistance. Confirm the material/finish and applicable test conditions for the supplied cabinet; the test duration is not a service-life prediction.
Buyer Questions
Answers specific to Outdoor Communication Single-Compartment Cabinet selection, configuration and purchasing.
Dimensions are project-specific in this record. Request the approved configuration drawing after equipment and support systems have been selected.
They are configuration choices. Define source capacity, interfaces and controls so the required components can be reviewed and quoted.
No. Module quantity, supply limits, redundancy and distribution determine the system arrangement. Confirm the complete power design.
Compatibility requires confirmation of protocols, interfaces, functions and platform integration scope for the selected devices.
Use the deployment context to narrow the configuration before comparing dimensions, capacities and options.
House communications, power and battery equipment in a serviceable outdoor enclosure.
Protect distributed equipment while maintaining cable entry and service access.
Coordinate cabinet capacity, thermal management and equipment zoning.
Fit protected infrastructure into space-constrained or visually sensitive locations.
Before quotation: confirm capacity, interfaces, installation environment, power conditions, quantity and required options.
