Telecom base stations
House communications, power and battery equipment in a serviceable outdoor enclosure.
A compact sandwich-panel cabinet combining an aesthetic exterior, upper and lower equipment zones, concealed fasteners and configurable cooling for exposed communications sites.
Three-point locking and internally positioned fasteners reduce exposed disassembly points. The source lists a 1500 W compressor cooling arrangement, bottom entry using 8–16 cable glands, a base, lighting and a grounding bar.
Power distribution, power system, generator connection, batteries and monitoring are configuration items rather than an assumed package.

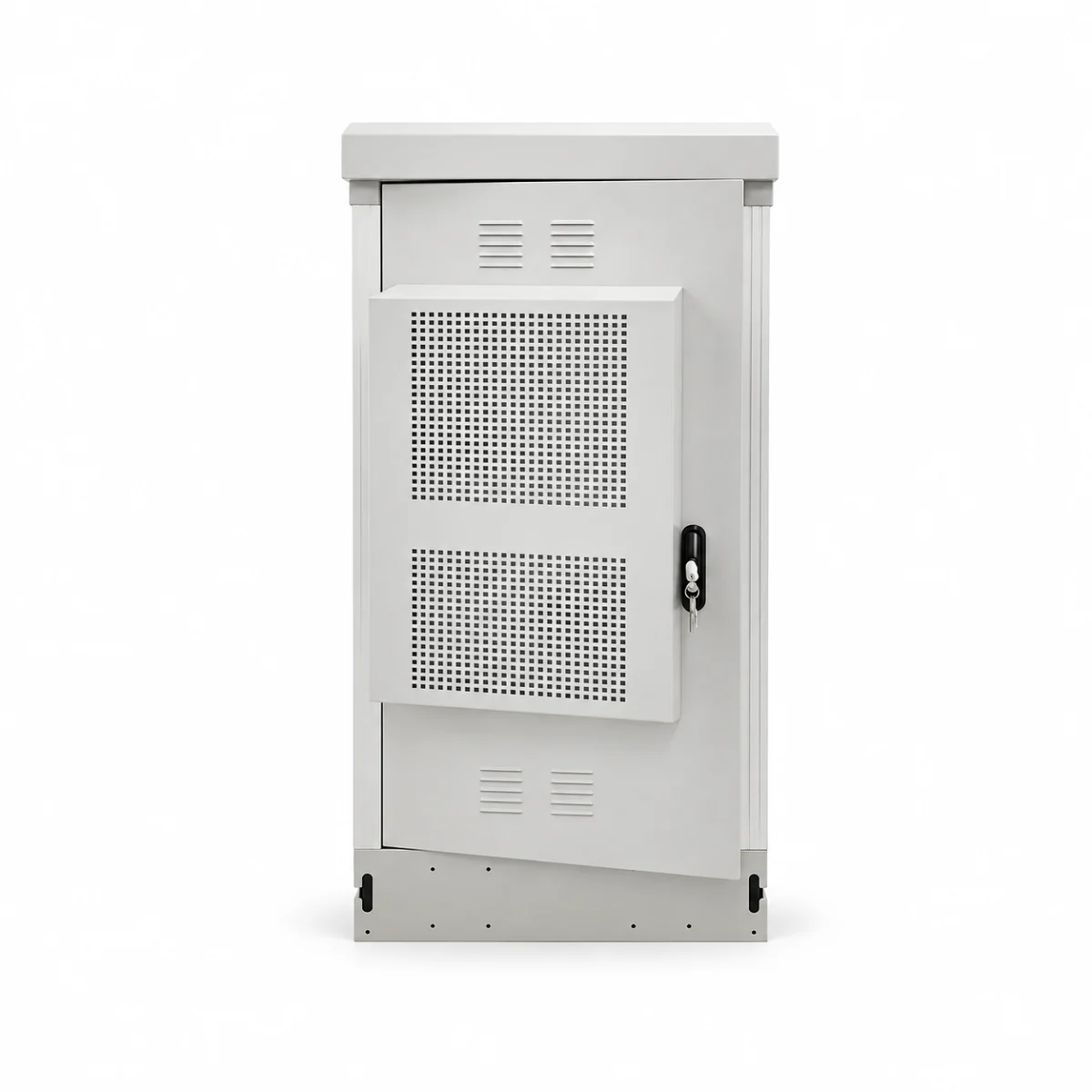

The Outdoor Anti-Theft Aesthetic Cabinet addresses sites where equipment security and exterior appearance influence cabinet selection. Its single-cabinet layout separates upper and lower areas so equipment and battery accommodation can be planned within a compact footprint.
The HJ-XDF-X02 example measures 1400 × 650 × 650 mm, with a battery rack and 50 mm sandwich-panel construction. Installed equipment, reserve capacity and cooling must be agreed together because all compete for internal space.
Review the cabinet elevation with equipment heights, battery mass, service clearances and cable bend paths. Choose the thermal arrangement from measured heat load; document whether an emergency fan and loss-of-power behavior are required.
Huijue Group can assess private-label exterior treatments and OEM cabinet production from approved drawings or reference samples. Aesthetic changes, lock interfaces and internal zoning are subject to engineering, tooling, test, quantity and delivery-scope confirmation.
Send appearance references, equipment and battery drawings, cooling load, cable-entry schedule and access-control requirements.
| HJ-XDF-X02 Product Configuration | |||||
|---|---|---|---|---|---|
| No. | Name | Specification | Qty | Unit | Remarks |
| 1 | Sandwich-Panel Outdoor Cabinet (Single Cabinet) | 1400*650*650 H*W*D | 1 | Set | Includes uprights and internal structural parts; provides equipment mounting space, 1 battery rack set, 50 mm sandwich-panel structure, upper/lower compartments |
| 2 | Shelves / L-Brackets | * | Set | Optional (1–6 pcs) | |
| 3 | Air Conditioner | Compressor 1500W | * | Set | (Fan, heat exchanger, or air conditioner optional) |
| 4 | Base | 1 | Set | ||
| 5 | Emergency Fan | * | Set | Starts when air conditioner loses power | |
| 6 | Lamp | 1 | pc | ||
| 7 | Power Distribution Unit | AC / DC | * | Set | Optional |
| 8 | Power System | * | Set | Optional | |
| Generator Socket | * | Set | Optional | ||
| 8 | Battery | * | Set | Optional | |
| 9 | Monitoring Unit | * | Set | Optional (sensors optional) | |
| 10 | Other Configuration | * | Set | Optional (customizable to customer requirements) | |
| 11 | Grounding Bar | 1 | Set | ||
| 12 | Accessories | Installation accessories | 1 | Set | Standard |
The enclosure is source-listed at IP55 or higher. Coastal use requires a defined material and finish specification matched to actual corrosion exposure.
Buyer Questions
Answers specific to Outdoor Anti-Theft Aesthetic Cabinet selection, configuration and purchasing.
A battery rack is described, while the battery itself is optional. Specify chemistry, capacity and dimensions separately.
The documented features include three-point locking and concealed fasteners. Any required resistance test, lock model or access system must be agreed for the order.
Use the deployment context to narrow the configuration before comparing dimensions, capacities and options.
House communications, power and battery equipment in a serviceable outdoor enclosure.
Protect distributed equipment while maintaining cable entry and service access.
Coordinate cabinet capacity, thermal management and equipment zoning.
Fit protected infrastructure into space-constrained or visually sensitive locations.
Before quotation: confirm capacity, interfaces, installation environment, power conditions, quantity and required options.
