AC vs DC Distribution in Telecom Sites: Architecture and Protection Boundaries

Decisions that separate the options

Separate AC-source distribution from protected DC load branches. Start with the operating requirement and installation boundary, then separate system requirements from product claims so each supplier knows which evidence must accompany the offered configuration.

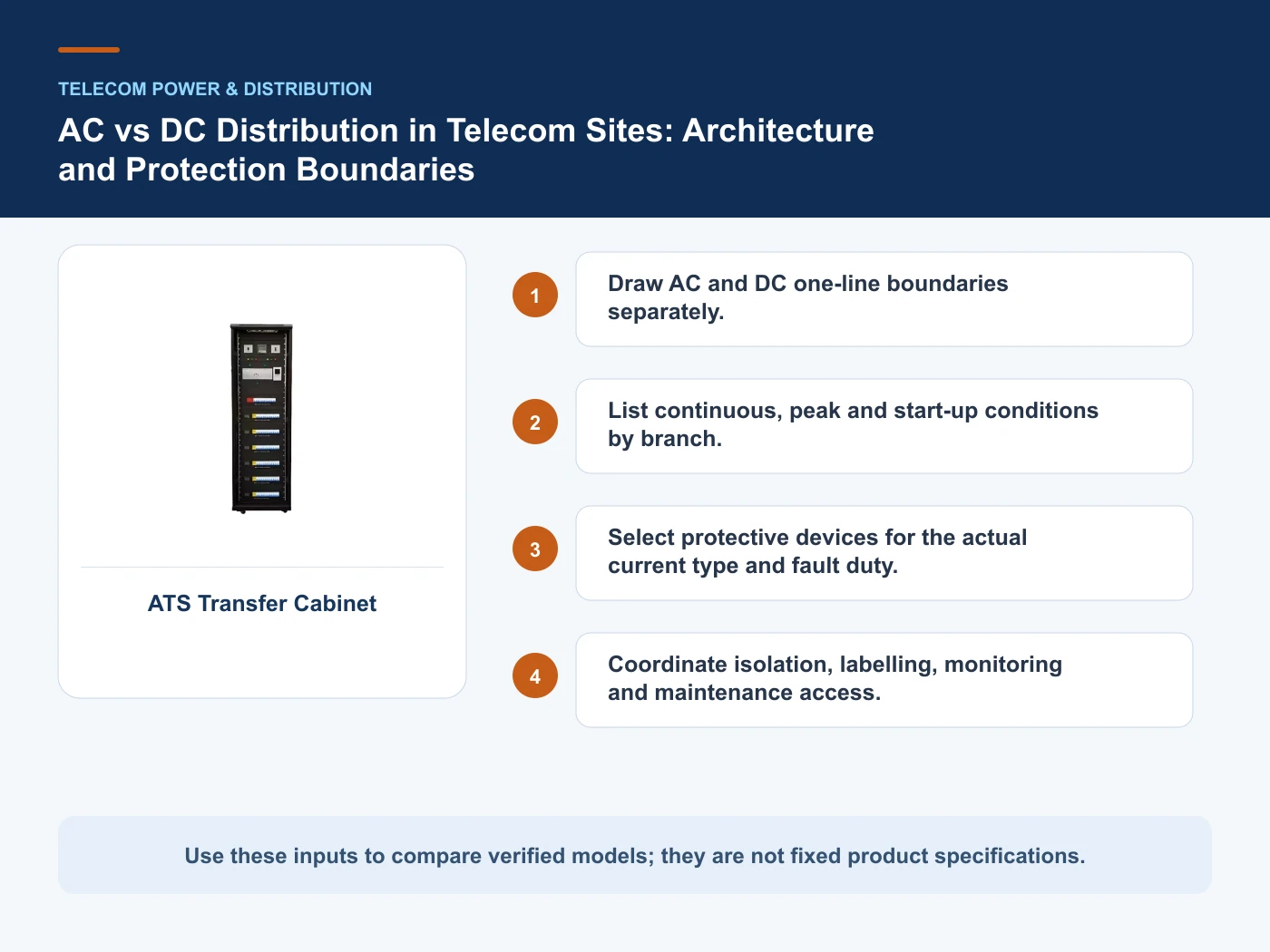

• Draw AC and DC one-line boundaries separately.
• List continuous, peak and start-up conditions by branch.
• Select protective devices for the actual current type and fault duty.
• Coordinate isolation, labelling, monitoring and maintenance access.

Where the options diverge

This table connects AC input, DC interfaces, rectifier capacity, branch protection, redundancy and backup to the decision on AC vs DC telecom distribution. It is a decision aid rather than a universal performance table: exact capacity, environmental class, electrical or optical limits and certifications must come from the selected model, applicable project documents and verifiable test evidence.

Reference point: ETSI EN 300 132-2: -48 V DC input interface at telecommunications equipment and IEC 61439-2: Power switchgear and controlgear assemblies frame the terminology or method used for this AC vs DC telecom distribution comparison. They do not approve a product configuration; apply the edition named by the contract and local authority.

Relevant products from our communications portfolio

The products below connect the AC vs DC telecom distribution decision to real catalogue families and verified site photography. They are starting points, not a claim that every configuration described here is a standard stock item; confirm model, interface, rating, drawing and testing scope with the project team.

• Automatic Transfer Switch (ATS) Cabinet — use this product page as a configuration reference when you draw AC and DC one-line boundaries separately. Confirm the offered model, interfaces, drawings and available evidence before quotation.
• UPS Power Distribution Cabinet — use this product page as a configuration reference when you list continuous, peak and start-up conditions by branch. Confirm the offered model, interfaces, drawings and available evidence before quotation.
• 5G Intelligent Integrated Power Supply — use this product page as a configuration reference when you select protective devices for the actual current type and fault duty. Confirm the offered model, interfaces, drawings and available evidence before quotation.

For adjacent configurations, browse Telecom Power & Site Energy and compare those options against the AC vs DC telecom distribution inputs above, including ac source and fault data.

A comparison workflow that avoids label-based selection

1. Step 1: Create AC and DC load schedules. Record AC source and fault data as an explicit input. Voltage, frequency and fault level drive assembly design.
2. Step 2: Define source, bus and return/bonding arrangements. Record DC interface and polarity as an explicit input. Polarity, DC breaking duty and return arrangement matter.
3. Step 3: Coordinate branch protection and conductors. Record Branch load currents as an explicit input. Define points and protocols rather than a generic smart label.
4. Step 4: Review isolation and functional test procedures. Record Protection and reserve circuits as an explicit input. Voltage, frequency and fault level drive assembly design.

Common mistakes to avoid

• Using an AC-only device rating on a DC branch.
• Combining cooling loads with battery-backed telecom loads without intent.
• Quoting branch count without current and reserve requirements.

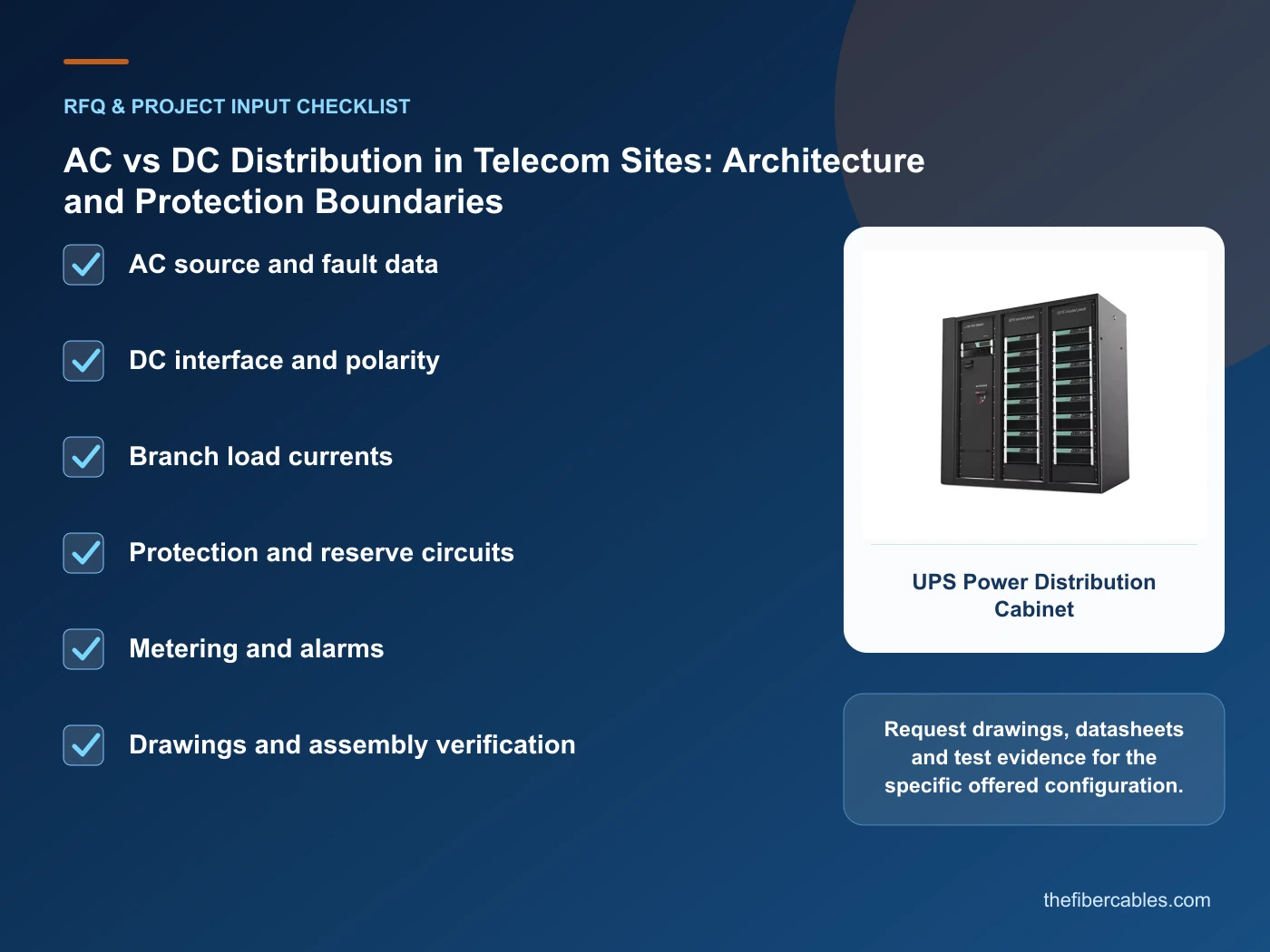

What to include in the RFQ or design input

For AC vs DC telecom distribution, a complete request reduces back-and-forth and prevents a catalogue image from being mistaken for a verified configuration. Record the following fields, identify which values are mandatory or provisional and attach route, interface or layout drawings where relevant.

• AC source and fault data
• DC interface and polarity
• Branch load currents
• Protection and reserve circuits
• Metering and alarms
• Drawings and assembly verification

Sources and standards

For AC vs DC telecom distribution, the references below define relevant terminology, scope or test methods. ETSI EN 300 132-2: -48 V DC input interface at telecommunications equipment is one documented boundary for this topic; neither a standards catalogue page nor a category page proves certification of the offered product. Apply the edition adopted by the contract, destination market and authority having jurisdiction.

1. ETSI EN 300 132-2: -48 V DC input interface at telecommunications equipment (V2.8.1, 10/2024). Use it to verify the terminology and scope relevant to AC vs DC telecom distribution; the source does not certify a specific offered product.
2. IEC 61439-2: Power switchgear and controlgear assemblies (2020, Ed.3). Use it to verify the terminology and scope relevant to AC vs DC telecom distribution; the source does not certify a specific offered product.

Source review: Links and cited editions for AC vs DC telecom distribution were checked on 2026-10-15. Confirm the edition adopted by the project contract and the authority having jurisdiction.
