Direct answer
Size a -48 V telecom power system from the DC load at operating states, battery recharge requirement, conversion losses, redundancy philosophy and planned growth. First separate continuous, peak and start-up loads. Then define the DC interface range and branch requirements. Rectifier capacity should support the design load and required charging under the stated redundancy condition; module count is the result, not the starting point.
Within the broader Telecom Power & Distribution workflow, this article focuses on size -48V telecom power system: convert load and charging requirements into rectifier capacity. Confirm dc voltage range and the evidence for the offered product before final engineering approval.
Inputs required before any calculation
Convert load and charging requirements into rectifier capacity. Start with the operating requirement and installation boundary, then separate system requirements from product claims so each supplier knows which evidence must accompany the offered configuration.
- Use measured or engineered load states.
- Separate service load from battery recharge.
- Define N, N+1 or other redundancy explicitly.
- Check input, thermal and branch-distribution limits.
Use measured or engineered load states
Capture DC voltage range, then use Continuous load as a practical comparison point: Normal equipment demand. Before approval, verify this point: Use DC current at stated interface voltage.
Separate service load from battery recharge
Capture Continuous/peak load, then use Peak/start-up load as a practical comparison point: Short-duration operating state. Before approval, verify this point: Check module and branch response.
Define N, N+1 or other redundancy explicitly
Capture Recharge current, then use Recharge demand as a practical comparison point: Restores battery after discharge. Before approval, verify this point: Set by autonomy and recovery objective.
Check input, thermal and branch-distribution limits
Capture Redundancy, then use Growth/reserve as a practical comparison point: Planned future equipment. Before approval, verify this point: Label separately from redundancy.

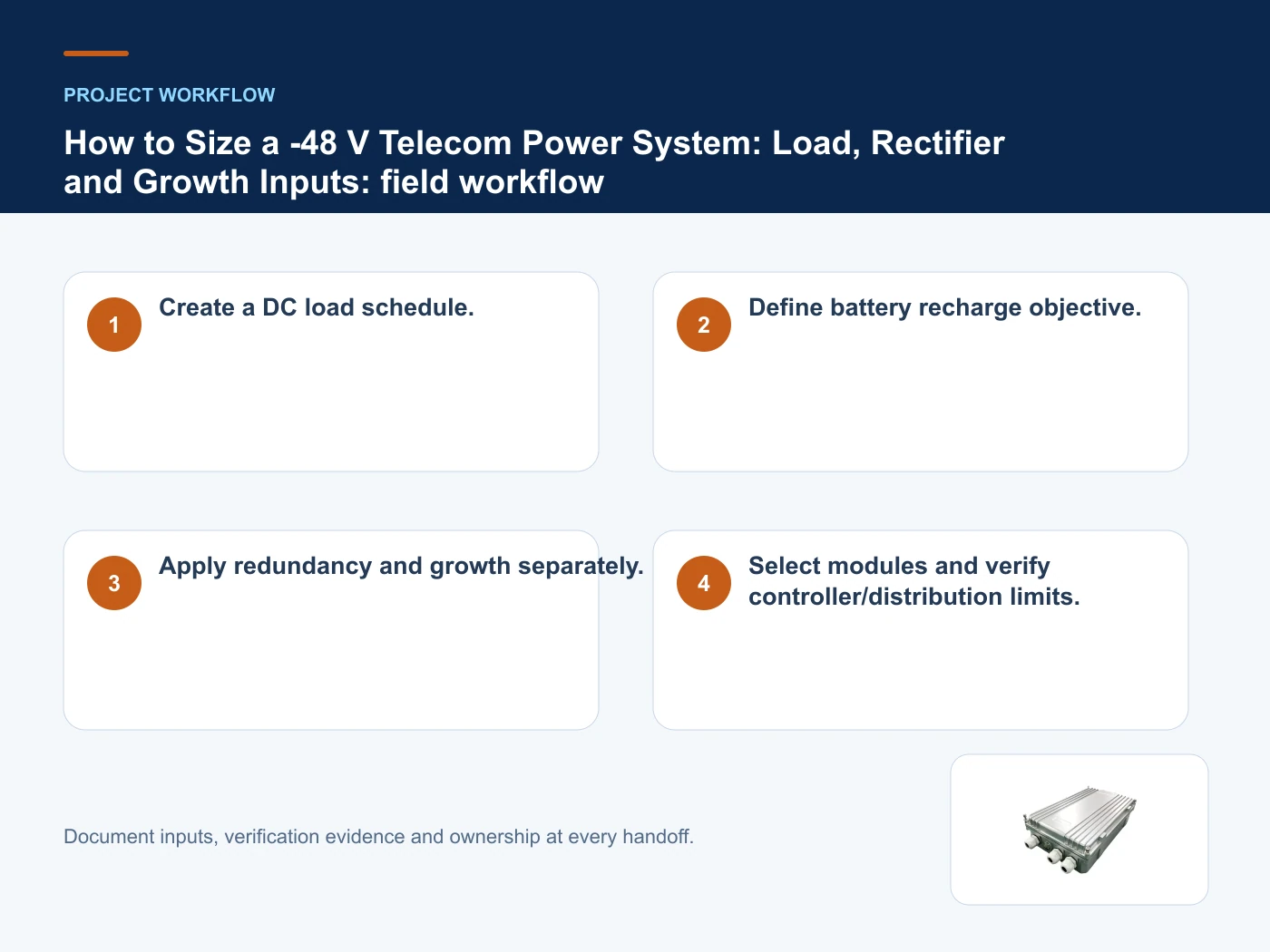

A traceable sizing and verification workflow
- Step 1: Create a DC load schedule. Record DC voltage range as an explicit input. Use DC current at stated interface voltage.
- Step 2: Define battery recharge objective. Record Continuous/peak load as an explicit input. Check module and branch response.
- Step 3: Apply redundancy and growth separately. Record Recharge current as an explicit input. Set by autonomy and recovery objective.
- Step 4: Select modules and verify controller/distribution limits. Record Redundancy as an explicit input. Label separately from redundancy.
Calculation boundaries and acceptance limits
This table connects AC input, DC interfaces, rectifier capacity, branch protection, redundancy and backup to the decision on size -48V telecom power system. It is a decision aid rather than a universal performance table: exact capacity, environmental class, electrical or optical limits and certifications must come from the selected model, applicable project documents and verifiable test evidence.
| Option or input | When it fits | What must be verified |
|---|---|---|
| Continuous load | Normal equipment demand | Use DC current at stated interface voltage |
| Peak/start-up load | Short-duration operating state | Check module and branch response |
| Recharge demand | Restores battery after discharge | Set by autonomy and recovery objective |
| Growth/reserve | Planned future equipment | Label separately from redundancy |
Reference point: ETSI EN 300 132-2: -48 V DC input interface at telecommunications equipment and ITU-T L.1221: Evaluation and selection of stationary batteries frame the terminology or method used for this size -48V telecom power system comparison. They do not approve a product configuration; apply the edition named by the contract and local authority.
Relevant products from our communications portfolio
The products below connect the size -48V telecom power system decision to real catalogue families and verified site photography. They are starting points, not a claim that every configuration described here is a standard stock item; confirm model, interface, rating, drawing and testing scope with the project team.
- 5G Intelligent Integrated Power Supply — use this product page as a configuration reference when you use measured or engineered load states. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Micro-Site Integrated Power Supply — use this product page as a configuration reference when you separate service load from battery recharge. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Outdoor AC/DC Power Supply — use this product page as a configuration reference when you define N, N+1 or other redundancy explicitly. Confirm the offered model, interfaces, drawings and available evidence before quotation.
For adjacent configurations, browse Telecom Power & Site Energy and compare those options against the size -48V telecom power system inputs above, including dc voltage range.
What to include in the RFQ or design input
For size -48V telecom power system, a complete request reduces back-and-forth and prevents a catalogue image from being mistaken for a verified configuration. Record the following fields, identify which values are mandatory or provisional and attach route, interface or layout drawings where relevant.
- DC voltage range
- Continuous/peak load
- Recharge current
- Redundancy
- Branch circuits
- Input/environment/monitoring
Common mistakes to avoid
- Adding arbitrary reserve percentages without purpose.
- Counting a redundant module as growth capacity.
- Ignoring input power and heat at full output.
Questions engineers and buyers ask
Can size -48V telecom power system be sized from a nominal rating alone?
No. The calculation must include dc voltage range, continuous/peak load, recharge current plus applicable margins, derating and acceptance limits.
Which result should appear in the RFQ?
State the design inputs, calculation method, selected value, reserve or margin and evidence required from the offered configuration.
Sources and standards
For size -48V telecom power system, the references below define relevant terminology, scope or test methods. ETSI EN 300 132-2: -48 V DC input interface at telecommunications equipment is one documented boundary for this topic; neither a standards catalogue page nor a category page proves certification of the offered product. Apply the edition adopted by the contract, destination market and authority having jurisdiction.
- ETSI EN 300 132-2: -48 V DC input interface at telecommunications equipment (V2.8.1, 10/2024). Use it to verify the terminology and scope relevant to size -48V telecom power system; the source does not certify a specific offered product.
- ITU-T L.1221: Evaluation and selection of stationary batteries (11/2018). Use it to verify the terminology and scope relevant to size -48V telecom power system; the source does not certify a specific offered product.
Source review: Links and cited editions for size -48V telecom power system were checked on 2026-10-15. Confirm the edition adopted by the project contract and the authority having jurisdiction.
