Modular power and backup for 5G micro-sites, combining remote status reporting, near-site maintenance interfaces and optional location or abnormal-consumption monitoring.

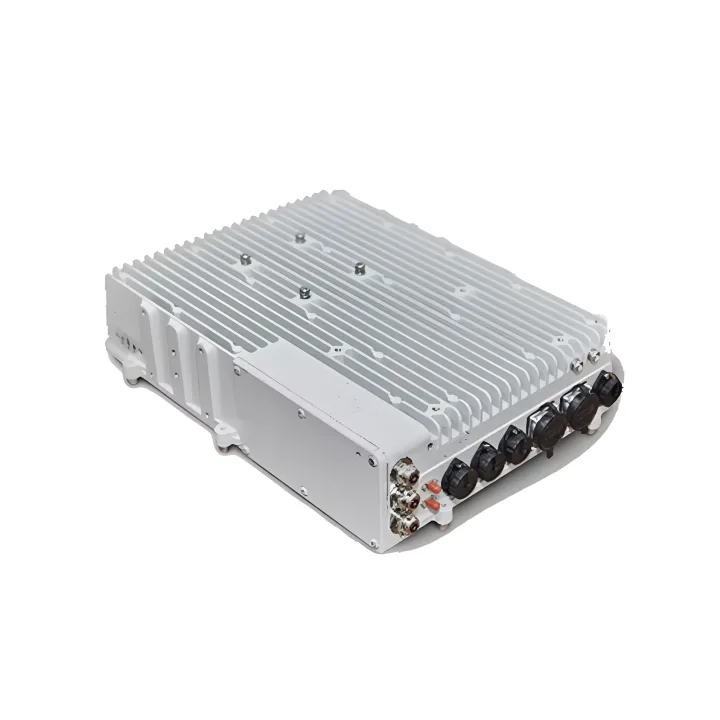

The 5G Intelligent Integrated Power Supply addresses power, battery and monitoring requirements at compact radio sites. It combines backup-power functions with a modular physical arrangement that can be installed near the network equipment on a wall or pole. Automatic use of battery power on utility loss is part of the described operating concept; the battery capacity is chosen for the project.
Remote and local service needs are treated separately. NB-IoT is listed for status and alarms, while Wi-Fi, Bluetooth and infrared provide near-field maintenance options. Confirm which interfaces are fitted and supported by the final monitoring package.
The available record does not define a single fixed wattage or battery size for this product. Submit the radio load, outage duty and physical mounting constraints to establish a bill of materials. Verify mobile-network availability, monitoring access and any metering acceptance requirements for the installation country.
Huijue Group can evaluate private-label presentation, OEM module combinations and manufacture based on a site drawing or supplied sample. Connector changes, mounting parts and wireless functions depend on engineering feasibility, tooling, test requirements, production quantity and the agreed supply scope.
Include equipment watts and voltage, battery autonomy, pole/wall drawing, NB-IoT coverage, local maintenance preference, metering points and optional GPS or consumption-alarm requirements.
| Huijue Group Integrated Power | Conventional Power | |
|---|---|---|
| Overall functions | Integrates backup power and batteries with high density; Rich NMS monitoring—manageable and controllable with real-time status; Rich parameter settings and alarms for early anomaly detection and preventive maintenance. | Separate units with messy cabling and more hazards; Limited functions and relatively lower deployment efficiency; |
| Structure & appearance | Waterproof, corrosion-, rust-, and deformation-resistant for lasting durability RRU-like form factor with natural ventilation, high IP rating, and broad site applicability | Sheet-metal enclosure prone to corrosion, rust, and deformation; Forced-air cooling (with openings), lower IP rating, limited scenarios. |
| Installation & maintenance | Can be installed close to micro-sites; pole-mount or wall-mount; Aviation connectors for detachable peripherals ease installation; Modular units improve maintainability. | Large footprint and complex structure occupy floor space; Requires concrete plinth—heavy civil work; No monitoring; operating status unknown. |
Declare rain exposure, solar heating, mounting height and service access. Confirm the final enclosure rating and thermal design for the selected modular assembly.
Buyer Questions
Answers specific to 5G Intelligent Integrated Power Supply selection, configuration and purchasing.
The described system supports power, battery and environment monitoring with remote alarms. The sensors, reporting points and NB-IoT platform interface must be agreed for the order.
GPS is an option. Specify whether location reporting is required and how it should appear in the operator's maintenance workflow.
Use measured equipment consumption and the required outage coverage to size the battery. The product name alone does not establish a fixed runtime or storage capacity.
