Direct answer
An enclosure’s IP code classifies protection against solid-object and water ingress under defined tests; it does not rate corrosion, UV, impact, condensation or cooling. Cable entries are part of the enclosure system. Their location, gland type, cable diameter, bend radius, sealing, drip path, bonding and unused-hole treatment must be frozen in drawings. Field drilling can invalidate the tested arrangement unless it is reviewed and resealed correctly.
Within the broader Outdoor Telecom & Edge Sites workflow, this article focuses on outdoor cabinet IP rating: coordinate ingress protection with cable entries and field changes. Confirm target ip requirement and the evidence for the offered product before final engineering approval.
Project inputs that narrow the product family
Coordinate ingress protection with cable entries and field changes. Start with the operating requirement and installation boundary, then separate system requirements from product claims so each supplier knows which evidence must accompany the offered configuration.

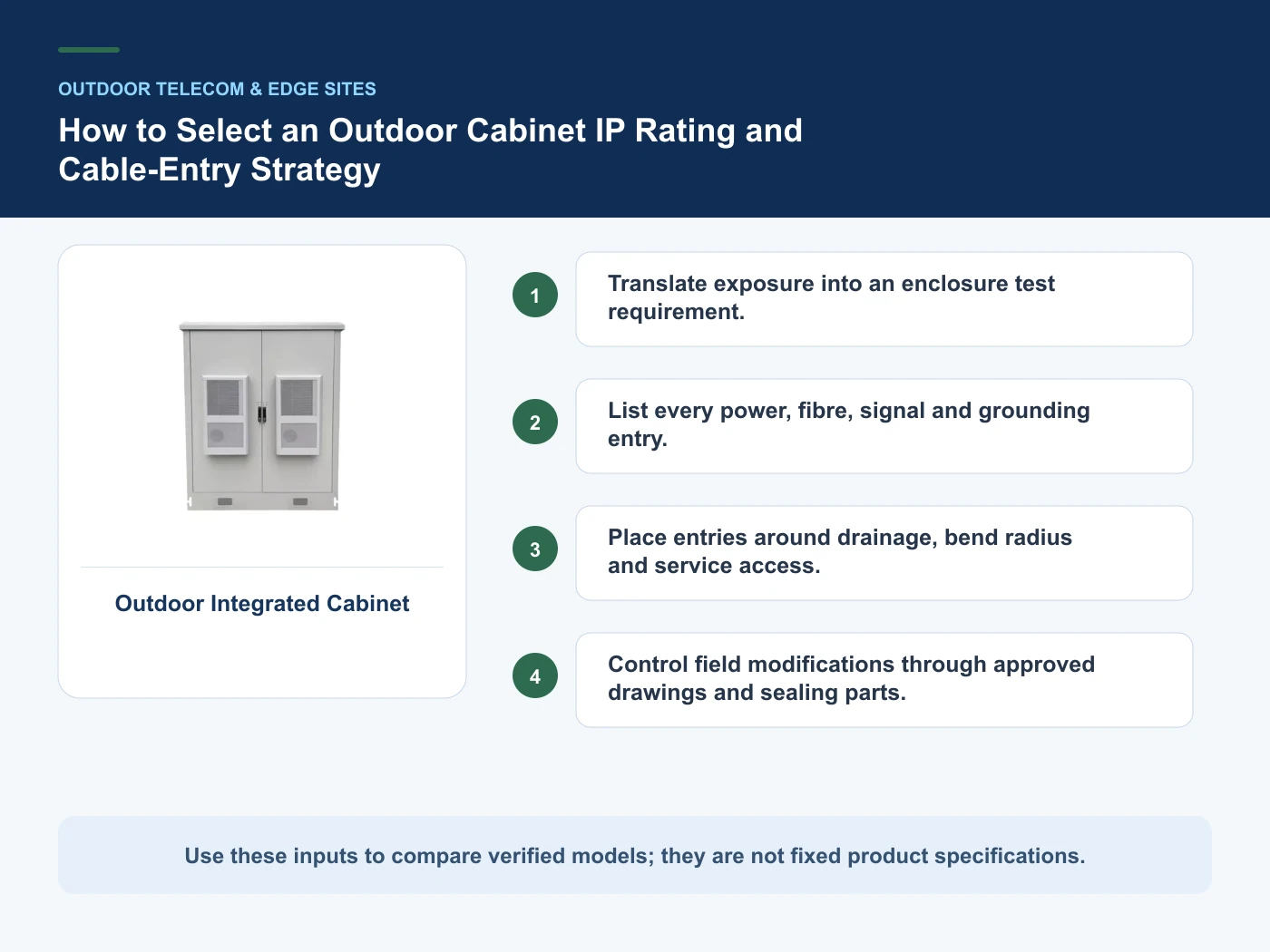

- Translate exposure into an enclosure test requirement.
- List every power, fibre, signal and grounding entry.
- Place entries around drainage, bend radius and service access.
- Control field modifications through approved drawings and sealing parts.
Translate exposure into an enclosure test requirement
Capture Target IP requirement, then use IP code as a practical comparison point: Solid and water ingress classification. Before approval, verify this point: Not a corrosion, thermal or lifetime rating.
List every power, fibre, signal and grounding entry
Capture Cable list and diameters, then use Gland plate as a practical comparison point: Organized replaceable entry area. Before approval, verify this point: Capacity and material must match the cable list.
Place entries around drainage, bend radius and service access
Capture Connector passage size, then use Individual glands as a practical comparison point: Seal around defined cable diameters. Before approval, verify this point: Unused entries and multi-cable seals require review.
Control field modifications through approved drawings and sealing parts
Capture Entry direction, then use Field holes as a practical comparison point: Site-specific modification. Before approval, verify this point: Must preserve structure, bonding and intended ingress performance.
Relevant products from our communications portfolio
The products below connect the outdoor cabinet IP rating decision to real catalogue families and verified site photography. They are starting points, not a claim that every configuration described here is a standard stock item; confirm model, interface, rating, drawing and testing scope with the project team.
- Outdoor Integrated Cabinet — use this product page as a configuration reference when you translate exposure into an enclosure test requirement. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Outdoor Air-Conditioned Cabinet — use this product page as a configuration reference when you list every power, fibre, signal and grounding entry. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Fan-cooled Outdoor Mini Cabinet — use this product page as a configuration reference when you place entries around drainage, bend radius and service access. Confirm the offered model, interfaces, drawings and available evidence before quotation.
For adjacent configurations, browse Outdoor Cabinets & Site Infrastructure and compare those options against the outdoor cabinet IP rating inputs above, including target ip requirement.
Selection boundaries to verify
This table connects enclosures, thermal management, environmental exposure, site integration and maintenance access to the decision on outdoor cabinet IP rating. It is a decision aid rather than a universal performance table: exact capacity, environmental class, electrical or optical limits and certifications must come from the selected model, applicable project documents and verifiable test evidence.
| Option or input | When it fits | What must be verified |
|---|---|---|
| IP code | Solid and water ingress classification | Not a corrosion, thermal or lifetime rating |
| Gland plate | Organized replaceable entry area | Capacity and material must match the cable list |
| Individual glands | Seal around defined cable diameters | Unused entries and multi-cable seals require review |
| Field holes | Site-specific modification | Must preserve structure, bonding and intended ingress performance |
Reference point: IEC 60529: Degrees of protection provided by enclosures (IP Code) and ETSI EN 300 019-1-4 environmental conditions for non-weatherprotected locations frame the terminology or method used for this outdoor cabinet IP rating comparison. They do not approve a product configuration; apply the edition named by the contract and local authority.
A practical product-selection workflow
- Step 1: Create the cable-entry schedule. Record Target IP requirement as an explicit input. Not a corrosion, thermal or lifetime rating.
- Step 2: Select entry side and gland/plate concept. Record Cable list and diameters as an explicit input. Capacity and material must match the cable list.
- Step 3: Review bend, drip, separation and service space. Record Connector passage size as an explicit input. Unused entries and multi-cable seals require review.
- Step 4: Approve manufacturing and site-change drawings. Record Entry direction as an explicit input. Must preserve structure, bonding and intended ingress performance.
Common mistakes to avoid
- Choosing the highest IP number without a ventilation strategy.
- Specifying gland size before connector and cable dimensions.
- Drilling the tested enclosure without a resealing plan.
What to include in the RFQ or design input
For outdoor cabinet IP rating, a complete request reduces back-and-forth and prevents a catalogue image from being mistaken for a verified configuration. Record the following fields, identify which values are mandatory or provisional and attach route, interface or layout drawings where relevant.
- Target IP requirement
- Cable list and diameters
- Connector passage size
- Entry direction
- Gland/plate material
- Field modification and inspection method
Questions engineers and buyers ask
What should a buyer specify first for outdoor cabinet IP rating?
Begin with target ip requirement, cable list and diameters, connector passage size; these inputs narrow the product family before optional features are compared.
Does a product photo confirm the final configuration?
No. Treat the image as a visual reference and confirm the model, drawing, interfaces, ratings and test evidence for the offered unit.
Sources and standards
For outdoor cabinet IP rating, the references below define relevant terminology, scope or test methods. IEC 60529: Degrees of protection provided by enclosures (IP Code) is one documented boundary for this topic; neither a standards catalogue page nor a category page proves certification of the offered product. Apply the edition adopted by the contract, destination market and authority having jurisdiction.
- IEC 60529: Degrees of protection provided by enclosures (IP Code) (Consolidated Ed.2). Use it to verify the terminology and scope relevant to outdoor cabinet IP rating; the source does not certify a specific offered product.
- ETSI EN 300 019-1-4 environmental conditions for non-weatherprotected locations (V3.1.1, 05/2026; current edition). Use it to verify the terminology and scope relevant to outdoor cabinet IP rating; the source does not certify a specific offered product.
Source review: Links and cited editions for outdoor cabinet IP rating were checked on 2026-10-15. Confirm the edition adopted by the project contract and the authority having jurisdiction.
Related guidance
Outdoor Telecom Site Design: Cabinets, Cooling, Power and Equipment Shelters • Fan Cooling vs Heat Exchanger vs Air Conditioner for Outdoor Telecom Cabinets • Single-Compartment vs Multi-Compartment Outdoor Telecom Cabinets
Prepare a outdoor cabinet IP rating configuration for review
Send target ip requirement, cable list and diameters, connector passage size, entry direction, together with quantity and delivery destination. We will help narrow the relevant product family and identify the drawings or test evidence needed for quotation.
