Direct answer
A cabinet heat exchanger transfers heat between separated internal and external air circuits; it does not cool below ambient temperature. Selection therefore depends on equipment dissipation, allowable internal temperature rise, worst-case ambient conditions, exchanger performance, airflow resistance and cabinet heat transfer. Confirm that the expected internal temperature remains within every installed component’s limit and that fans can move air through the actual rack and compartment layout. Review external fouling, filter or coil access, condensate behavior where applicable, fan alarms, supply voltage and replacement access. If the required internal temperature is below the site ambient or the heat load exceeds the exchanger boundary, active refrigeration or another architecture may be needed. The offered model should be checked against documented project inputs rather than cabinet volume.
Within the broader Outdoor Cabinet Thermal Management workflow, this article focuses on telecom cabinet heat exchanger selection: determine whether a heat exchanger can maintain equipment limits without exchanging contaminated outside air. Confirm continuous and peak heat dissipation and the evidence for the offered product before final engineering approval.
Scope boundary: This article narrows heat-exchanger inputs after a closed-loop approach is considered. It does not repeat the broader cooling-method comparison or the separate refrigeration sizing workflow.
Project inputs that narrow the product family
Determine whether a heat exchanger can maintain equipment limits without exchanging contaminated outside air. Start with the operating requirement and installation boundary, then separate system requirements from product claims so each supplier knows which evidence must accompany the offered configuration.

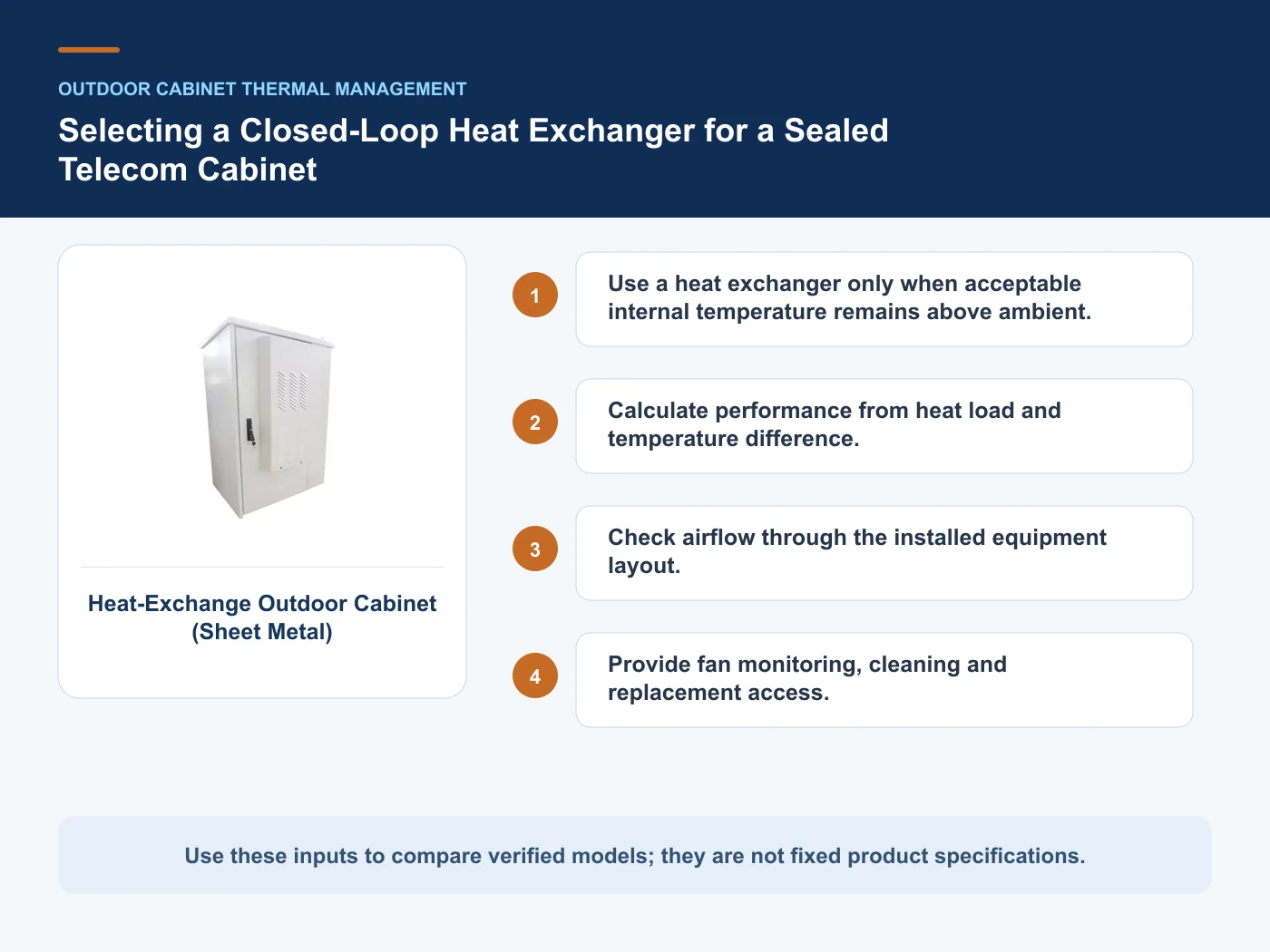

- Use a heat exchanger only when acceptable internal temperature remains above ambient.
- Calculate performance from heat load and temperature difference.
- Check airflow through the installed equipment layout.
- Provide fan monitoring, cleaning and replacement access.
Use a heat exchanger only when acceptable internal temperature remains above ambient
Capture Continuous and peak heat dissipation, then use Thermal boundary as a practical comparison point: Heat load and allowable temperature rise. Before approval, verify this point: Defines required exchanger performance.
Calculate performance from heat load and temperature difference
Capture Maximum ambient temperature, then use Air circuits as a practical comparison point: Internal and external airflow paths. Before approval, verify this point: Keep circuits separated and unobstructed.
Check airflow through the installed equipment layout
Capture Maximum allowable internal temperature, then use Lifecycle as a practical comparison point: Fouling, alarms and fan replacement. Before approval, verify this point: Preserve performance after installation.
Provide fan monitoring, cleaning and replacement access
Capture Cabinet wall and compartment layout, then use Thermal boundary as a practical comparison point: Heat load and allowable temperature rise. Before approval, verify this point: Defines required exchanger performance.
Relevant products from our communications portfolio
The products below connect the telecom cabinet heat exchanger selection decision to real catalogue families and verified site photography. They are starting points, not a claim that every configuration described here is a standard stock item; confirm model, interface, rating, drawing and testing scope with the project team.

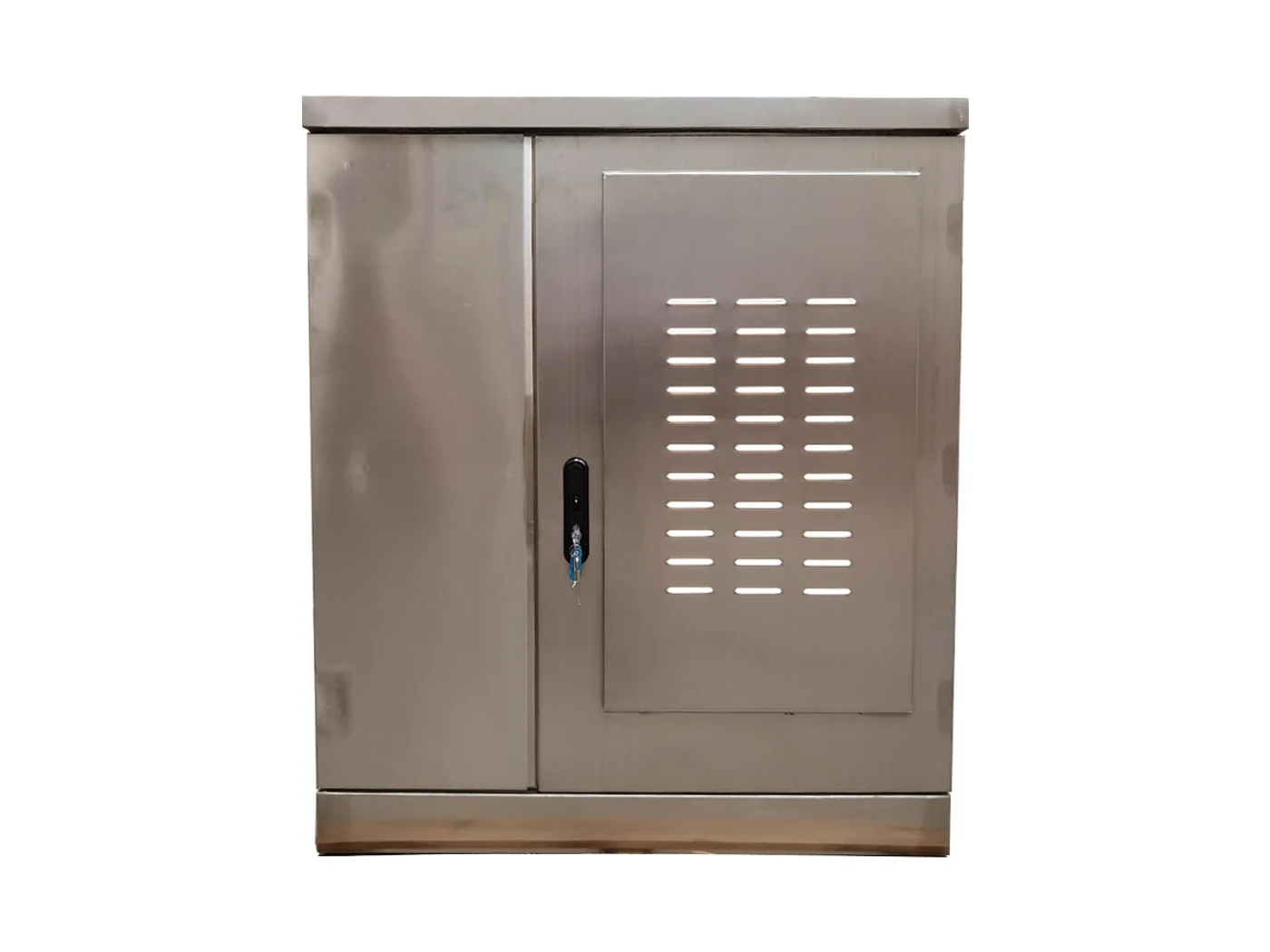

- Heat-Exchanger-Cooled Outdoor Telecom Cabinet (HJ-XDF-JF41) — use this product page as a configuration reference when you use a heat exchanger only when acceptable internal temperature remains above ambient. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Fan-Cooled Outdoor Cabinet (Sheet Metal) JF02 — use this product page as a configuration reference when you calculate performance from heat load and temperature difference. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Outdoor Telecom Integrated Power Cabinet — use this product page as a configuration reference when you check airflow through the installed equipment layout. Confirm the offered model, interfaces, drawings and available evidence before quotation.
For adjacent configurations, browse Outdoor Cabinets & Site Infrastructure and compare those options against the telecom cabinet heat exchanger selection inputs above, including continuous and peak heat dissipation.
Selection boundaries to verify
This table connects heat load, solar gain, condensation, airflow, heat exchangers, active cooling and battery thermal boundaries to the decision on telecom cabinet heat exchanger selection. It is a decision aid rather than a universal performance table: exact capacity, environmental class, electrical or optical limits and certifications must come from the selected model, applicable project documents and verifiable test evidence.
| Option or input | When it fits | What must be verified |
|---|---|---|
| Thermal boundary | Heat load and allowable temperature rise | Defines required exchanger performance |
| Air circuits | Internal and external airflow paths | Keep circuits separated and unobstructed |
| Lifecycle | Fouling, alarms and fan replacement | Preserve performance after installation |
Reference point: ETSI TR 102 489: Thermal management guidance for telecommunications equipment and ETSI EN 300 019-1-4: Environmental conditions and environmental tests for telecommunications equipment — stationary use at non-weatherprotected locations frame the terminology or method used for this telecom cabinet heat exchanger selection comparison. They do not approve a product configuration; apply the edition named by the contract and local authority.
A practical product-selection workflow
- Step 1: Confirm the temperature boundary. Record Continuous and peak heat dissipation as an explicit input. Defines required exchanger performance.
- Step 2: Calculate required heat transfer. Record Maximum ambient temperature as an explicit input. Keep circuits separated and unobstructed.
- Step 3: Check airflow and installation interfaces. Record Maximum allowable internal temperature as an explicit input. Preserve performance after installation.
- Step 4: Define alarms, maintenance and acceptance checks. Record Cabinet wall and compartment layout as an explicit input. Defines required exchanger performance.
Common mistakes to avoid
- Expecting a heat exchanger to cool below ambient.
- Selecting capacity from cabinet volume.
- Ignoring fouling and fan replacement access.
What to include in the RFQ or design input
For telecom cabinet heat exchanger selection, a complete request reduces back-and-forth and prevents a catalogue image from being mistaken for a verified configuration. Record the following fields, identify which values are mandatory or provisional and attach route, interface or layout drawings where relevant.
- Continuous and peak heat dissipation
- Maximum ambient temperature
- Maximum allowable internal temperature
- Cabinet wall and compartment layout
- Internal airflow resistance
- External dust and fouling exposure
Questions engineers and buyers ask
How should thermal boundary be evaluated for telecom cabinet heat exchanger selection?
Use heat load and allowable temperature rise as the operating context, record continuous and peak heat dissipation, and verify defines required exchanger performance for the exact offered configuration.
Which project input can change the telecom cabinet heat exchanger selection decision?
Use a heat exchanger only when acceptable internal temperature remains above ambient. Recheck that decision when maximum ambient temperature or maximum allowable internal temperature changes.
Sources and standards
The references below define terminology, scope or test methods relevant to telecom cabinet heat exchanger selection. They do not certify an offered product; confirm the edition adopted by the contract and destination authority.
- ETSI TR 102 489: Thermal management guidance for telecommunications equipment (V1.3.1, 06/2013). Use it to verify the terminology and scope relevant to telecom cabinet heat exchanger selection; the source does not certify a specific offered product.
- ETSI EN 300 019-1-4: Environmental conditions and environmental tests for telecommunications equipment — stationary use at non-weatherprotected locations (V3.1.1, 2026). Use it to verify the terminology and scope relevant to telecom cabinet heat exchanger selection; the source does not certify a specific offered product.
- IEC 62208:2023 — Empty enclosures for low-voltage switchgear and controlgear assemblies (2023, Ed. 3). Use it to verify the terminology and scope relevant to telecom cabinet heat exchanger selection; the source does not certify a specific offered product.
Source review: Links and cited editions for telecom cabinet heat exchanger selection were checked on 2026-10-16. Confirm the edition adopted by the project contract and the authority having jurisdiction.
