Direct answer
Outdoor battery cabinet thermal management should be based on the selected battery system’s verified operating, charging and storage limits. Record battery arrangement, expected charge and discharge duty, internal losses, ambient range, solar exposure and allowable temperature variation between positions. Coordinate shelves, spacing, cable routes, BMS communication, sensors, heating, cooling and any separation from rectifiers or other heat sources. The enclosure must also provide safe access for isolation, inspection and module replacement without damaging power or monitoring connections. IEC 62619 can inform safety requirements for relevant industrial lithium applications, but it does not prove that a particular cabinet-and-battery combination is compliant. Require product-specific documentation, alarm logic and a commissioning check for temperatures, communications and protective functions.
Within the broader Outdoor Cabinet Thermal Management workflow, this article focuses on outdoor battery cabinet thermal management: define a battery-cabinet thermal and monitoring boundary from the selected battery system and site conditions. Confirm battery model and configuration and the evidence for the offered product before final engineering approval.
Project inputs that narrow the product family
Define a battery-cabinet thermal and monitoring boundary from the selected battery system and site conditions. Start with the operating requirement and installation boundary, then separate system requirements from product claims so each supplier knows which evidence must accompany the offered configuration.

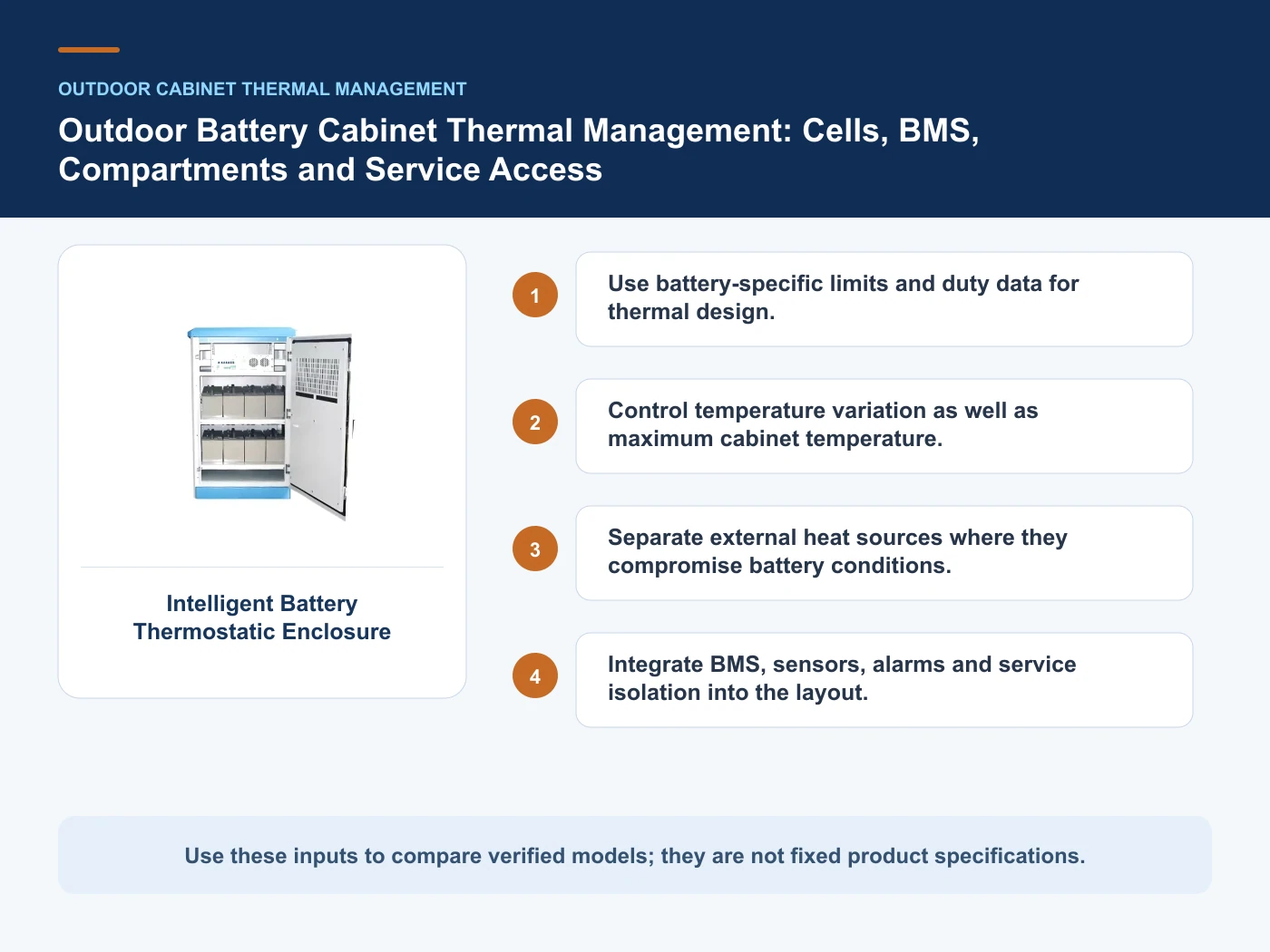

- Use battery-specific limits and duty data for thermal design.
- Control temperature variation as well as maximum cabinet temperature.
- Separate external heat sources where they compromise battery conditions.
- Integrate BMS, sensors, alarms and service isolation into the layout.
Use battery-specific limits and duty data for thermal design
Capture Battery model and configuration, then use Battery boundary as a practical comparison point: Chemistry, arrangement and operating limits. Before approval, verify this point: Use verified product documentation.
Control temperature variation as well as maximum cabinet temperature
Capture Charge and discharge duty, then use Thermal boundary as a practical comparison point: Losses, ambient, solar and other equipment. Before approval, verify this point: Check every operating state.
Separate external heat sources where they compromise battery conditions
Capture Operating and storage limits, then use Operational boundary as a practical comparison point: BMS, alarms, isolation and replacement. Before approval, verify this point: Keep monitoring and service practical.
Integrate BMS, sensors, alarms and service isolation into the layout
Capture Cabinet ambient and solar exposure, then use Battery boundary as a practical comparison point: Chemistry, arrangement and operating limits. Before approval, verify this point: Use verified product documentation.
Relevant products from our communications portfolio
The products below connect the outdoor battery cabinet thermal management decision to real catalogue families and verified site photography. They are starting points, not a claim that every configuration described here is a standard stock item; confirm model, interface, rating, drawing and testing scope with the project team.
- Intelligent Battery Thermostatic Enclosure — use this product page as a configuration reference when you use battery-specific limits and duty data for thermal design. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Multi-Environment Telecom Site Battery Cabinet — use this product page as a configuration reference when you control temperature variation as well as maximum cabinet temperature. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Battery Thermostatic Cabinet — use this product page as a configuration reference when you separate external heat sources where they compromise battery conditions. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- 30–50 kWh Telecom Battery Cabinet — use this product page as a configuration reference when you integrate BMS, sensors, alarms and service isolation into the layout. Confirm the offered model, interfaces, drawings and available evidence before quotation.
For adjacent configurations, browse Outdoor Cabinets & Site Infrastructure and compare those options against the outdoor battery cabinet thermal management inputs above, including battery model and configuration.
Selection boundaries to verify
This table connects heat load, solar gain, condensation, airflow, heat exchangers, active cooling and battery thermal boundaries to the decision on outdoor battery cabinet thermal management. It is a decision aid rather than a universal performance table: exact capacity, environmental class, electrical or optical limits and certifications must come from the selected model, applicable project documents and verifiable test evidence.
| Option or input | When it fits | What must be verified |
|---|---|---|
| Battery boundary | Chemistry, arrangement and operating limits | Use verified product documentation |
| Thermal boundary | Losses, ambient, solar and other equipment | Check every operating state |
| Operational boundary | BMS, alarms, isolation and replacement | Keep monitoring and service practical |
Reference point: IEC 62619: Safety requirements for secondary lithium cells and batteries for industrial applications and ETSI TR 102 489: Thermal management guidance for telecommunications equipment frame the terminology or method used for this outdoor battery cabinet thermal management comparison. They do not approve a product configuration; apply the edition named by the contract and local authority.
A practical product-selection workflow
- Step 1: Confirm battery-system limits and duty. Record Battery model and configuration as an explicit input. Use verified product documentation.
- Step 2: Model cabinet heat and temperature distribution. Record Charge and discharge duty as an explicit input. Check every operating state.
- Step 3: Coordinate layout, thermal devices and monitoring. Record Operating and storage limits as an explicit input. Keep monitoring and service practical.
- Step 4: Commission temperatures, alarms and protective functions. Record Cabinet ambient and solar exposure as an explicit input. Use verified product documentation.
Common mistakes to avoid
- Using nominal kWh as the only design input.
- Placing batteries beside uncontrolled heat sources.
- Monitoring one convenient point instead of representative battery locations.
What to include in the RFQ or design input
For outdoor battery cabinet thermal management, a complete request reduces back-and-forth and prevents a catalogue image from being mistaken for a verified configuration. Record the following fields, identify which values are mandatory or provisional and attach route, interface or layout drawings where relevant.
- Battery model and configuration
- Charge and discharge duty
- Operating and storage limits
- Cabinet ambient and solar exposure
- Shelves, spacing and cable routes
- Heating and cooling requirements
Questions engineers and buyers ask
How should battery boundary be evaluated for outdoor battery cabinet thermal management?
Use chemistry, arrangement and operating limits as the operating context, record battery model and configuration, and verify use verified product documentation for the exact offered configuration.
Which project input can change the outdoor battery cabinet thermal management decision?
Use battery-specific limits and duty data for thermal design. Recheck that decision when charge and discharge duty or operating and storage limits changes.
Sources and standards
The references below define terminology, scope or test methods relevant to outdoor battery cabinet thermal management. They do not certify an offered product; confirm the edition adopted by the contract and destination authority.
- IEC 62619: Safety requirements for secondary lithium cells and batteries for industrial applications (2022, Ed. 2). Use it to verify the terminology and scope relevant to outdoor battery cabinet thermal management; the source does not certify a specific offered product.
- ETSI TR 102 489: Thermal management guidance for telecommunications equipment (V1.3.1, 06/2013). Use it to verify the terminology and scope relevant to outdoor battery cabinet thermal management; the source does not certify a specific offered product.
- ETSI EN 300 019-1-4: Environmental conditions and environmental tests for telecommunications equipment — stationary use at non-weatherprotected locations (V3.1.1, 2026). Use it to verify the terminology and scope relevant to outdoor battery cabinet thermal management; the source does not certify a specific offered product.
- IEC 62208:2023 — Empty enclosures for low-voltage switchgear and controlgear assemblies (2023, Ed. 3). Use it to verify the terminology and scope relevant to outdoor battery cabinet thermal management; the source does not certify a specific offered product.
Source review: Links and cited editions for outdoor battery cabinet thermal management were checked on 2026-10-16. Confirm the edition adopted by the project contract and the authority having jurisdiction.
Related guidance
Outdoor Telecom Cabinet Thermal Design: Heat Load, Solar Gain, Airflow and Moisture • Cold-Climate Outdoor Telecom Cabinets: Heating, Insulation and Start-Up Conditions • Preventing Condensation in Outdoor Telecom Cabinets: Dew Point, Air Exchange and Heaters
Prepare a outdoor battery cabinet thermal management configuration for review
Send battery model and configuration, charge and discharge duty, operating and storage limits, cabinet ambient and solar exposure, quantity and delivery destination. Huijue Group can review the configuration boundary and identify the drawings or evidence needed for a factory quotation.
