Direct answer
A replacement telecom rectifier is compatible only when its electrical, mechanical and control interfaces match the installed system. Confirm the AC input range, DC output and adjustment window, current limit, temperature derating, connector pinout, shelf dimensions, airflow direction, hot-swap method, controller firmware and communications protocol. Rated watts alone do not establish compatibility, and a module that physically enters the slot may still have a different bus, alarm or current-sharing behavior. Record whether mixed-module operation is permitted by the relevant system documentation and test the proposed configuration under an agreed load before fleet deployment. Keep protection coordination and battery charging settings within the complete plant review. ETSI power-interface guidance helps define the load boundary, while product-specific evidence must come from the exact rectifier, shelf and controller combination offered.
Within the broader Telecom DC Power Engineering workflow, this article focuses on telecom rectifier module replacement: verify whether a replacement rectifier can operate safely in an existing telecom shelf and control system. Confirm existing shelf and controller model and the evidence for the offered product before final engineering approval.

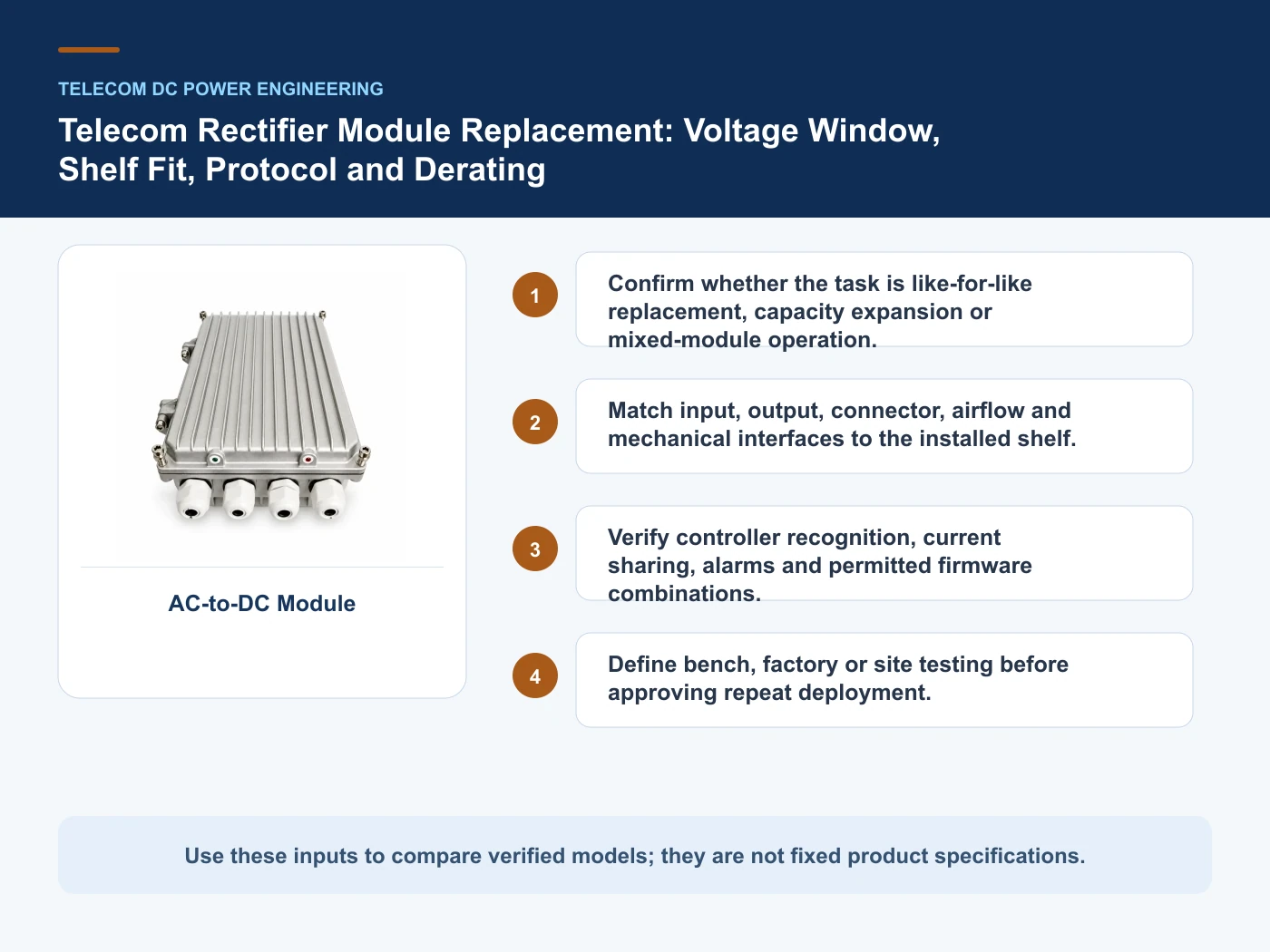

Interfaces that must match before replacement
Verify whether a replacement rectifier can operate safely in an existing telecom shelf and control system. Start with the operating requirement and installation boundary, then separate system requirements from product claims so each supplier knows which evidence must accompany the offered configuration.
- Confirm whether the task is like-for-like replacement, capacity expansion or mixed-module operation.
- Match input, output, connector, airflow and mechanical interfaces to the installed shelf.
- Verify controller recognition, current sharing, alarms and permitted firmware combinations.
- Define bench, factory or site testing before approving repeat deployment.
Confirm whether the task is like-for-like replacement, capacity expansion or mixed-module operation
Capture Existing shelf and controller model, then use Like-for-like module as a practical comparison point: The original approved module remains available. Before approval, verify this point: Revision, firmware and replacement procedure.
Match input, output, connector, airflow and mechanical interfaces to the installed shelf
Capture AC input range, then use Approved alternate module as a practical comparison point: System documentation identifies a compatible substitute. Before approval, verify this point: Pinout, controller support and derating.
Verify controller recognition, current sharing, alarms and permitted firmware combinations
Capture Required DC output window, then use New shelf and controller as a practical comparison point: Legacy platform cannot support the required module. Before approval, verify this point: Distribution interfaces, outage and commissioning scope.
Define bench, factory or site testing before approving repeat deployment
Capture Load and recharge current, then use Like-for-like module as a practical comparison point: The original approved module remains available. Before approval, verify this point: Revision, firmware and replacement procedure.
Relevant products from our communications portfolio

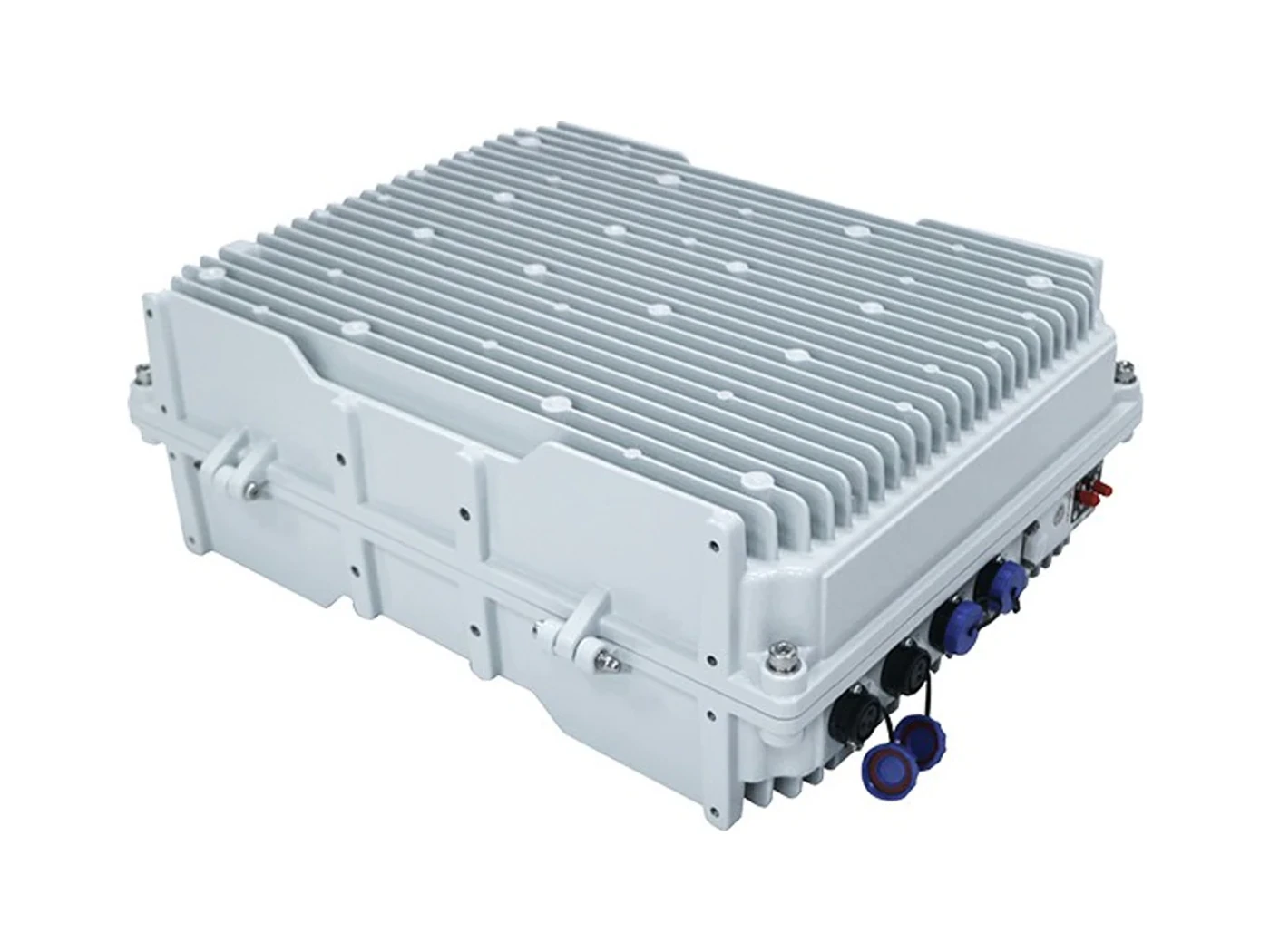

The products below connect the telecom rectifier module replacement decision to real catalogue families and verified site photography. They are starting points, not a claim that every configuration described here is a standard stock item; confirm model, interface, rating, drawing and testing scope with the project team.
- Outdoor Telecom AC/DC Power Supply Module — use this product page as a configuration reference when you confirm whether the task is like-for-like replacement, capacity expansion or mixed-module operation. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Integrated Telecom DC Power System — use this product page as a configuration reference when you match input, output, connector, airflow and mechanical interfaces to the installed shelf. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Wall-Mounted High-Frequency Switch-Mode Power System — use this product page as a configuration reference when you verify controller recognition, current sharing, alarms and permitted firmware combinations. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Cabinet-Type Telecom DC Power System (HDUM01-48) — use this product page as a configuration reference when you define bench, factory or site testing before approving repeat deployment. Confirm the offered model, interfaces, drawings and available evidence before quotation.
For adjacent configurations, browse Telecom Power & Site Energy and compare those options against the telecom rectifier module replacement inputs above, including existing shelf and controller model.
Replacement paths and compatibility evidence
This table connects -48 V plant retrofit, rectifiers, recharge, disconnect logic, protection, distribution and equipment interfaces to the decision on telecom rectifier module replacement. It is a decision aid rather than a universal performance table: exact capacity, environmental class, electrical or optical limits and certifications must come from the selected model, applicable project documents and verifiable test evidence.
| Option or input | When it fits | What must be verified |
|---|---|---|
| Like-for-like module | The original approved module remains available | Revision, firmware and replacement procedure |
| Approved alternate module | System documentation identifies a compatible substitute | Pinout, controller support and derating |
| New shelf and controller | Legacy platform cannot support the required module | Distribution interfaces, outage and commissioning scope |
Reference point: ETSI EN 300 132-2: Power supply interface at the input of ICT equipment — -48 V direct current and IEC 62477-1: Safety requirements for power electronic converter systems and equipment frame the terminology or method used for this telecom rectifier module replacement comparison. They do not approve a product configuration; apply the edition named by the contract and local authority.
A compatibility review from installed plant to approved alternate
- Step 1: Capture the installed shelf, controller, module revision, firmware and connector information. Record Existing shelf and controller model as an explicit input. Revision, firmware and replacement procedure.
- Step 2: Compare electrical limits, physical interfaces, airflow and environmental derating line by line. Record AC input range as an explicit input. Pinout, controller support and derating.
- Step 3: Review alarms, communications, current sharing and battery-control functions with the complete system. Record Required DC output window as an explicit input. Distribution interfaces, outage and commissioning scope.
- Step 4: Test the agreed configuration and retain the results with the approved replacement record. Record Load and recharge current as an explicit input. Revision, firmware and replacement procedure.
Common mistakes to avoid
- Assuming every nominal 48 V module can operate in every telecom shelf.
- Ignoring temperature derating, airflow direction or connector pinout.
- Approving a mixed-module arrangement without controller and current-sharing evidence.
What to include in the RFQ or design input
For telecom rectifier module replacement, a complete request reduces back-and-forth and prevents a catalogue image from being mistaken for a verified configuration. Record the following fields, identify which values are mandatory or provisional and attach route, interface or layout drawings where relevant.
- Existing shelf and controller model
- AC input range
- Required DC output window
- Load and recharge current
- Ambient temperature range
- Connector and mechanical drawing
- Monitoring protocol
- Hot-swap and test requirement
Questions engineers and buyers ask
How should like-for-like module be evaluated for telecom rectifier module replacement?
Use the original approved module remains available as the operating context, record existing shelf and controller model, and verify revision, firmware and replacement procedure for the exact offered configuration.
Which project input can change the telecom rectifier module replacement decision?
Confirm whether the task is like-for-like replacement, capacity expansion or mixed-module operation. Recheck that decision when ac input range or required dc output window changes.
Sources and standards
These sources support the method and vocabulary used in this guide. They are not a substitute for project requirements or evidence tied to the exact telecom rectifier module replacement configuration.
- ETSI EN 300 132-2: Power supply interface at the input of ICT equipment — -48 V direct current (V2.8.1, 2024). Use it to verify the terminology and scope relevant to telecom rectifier module replacement; the source does not certify a specific offered product.
- IEC 62477-1: Safety requirements for power electronic converter systems and equipment (2022, Ed. 2). Use it to verify the terminology and scope relevant to telecom rectifier module replacement; the source does not certify a specific offered product.
- ITU-T L.1210: Sustainable power-feeding solutions for 5G network (In force; reviewed 2026-10-16). Use it to verify the terminology and scope relevant to telecom rectifier module replacement; the source does not certify a specific offered product.
Source review: Links and cited editions for telecom rectifier module replacement were checked on 2026-10-16. Confirm the edition adopted by the project contract and the authority having jurisdiction.
Related guidance
Brownfield -48 V Telecom Power Retrofit: Capacity, Interfaces and Cutover Planning • Rectifier Capacity After an Outage: Why Battery Recharge Current Changes the Calculation • LVD vs BLVD in Telecom DC Power Systems: Load Priority and Battery Protection
Prepare a telecom rectifier module replacement configuration for review
For a project review, provide existing shelf and controller model, ac input range, required dc output window, load and recharge current. The response can separate standard options, customization points and information still required before quotation.
