Direct answer
A -48 V telecom site’s earthing and return architecture must be defined at the power interface and carried consistently through the distribution, cabinet bonding and equipment connections. Do not rely on the phrase positive earth as a complete design: identify the DC return conductor, the intended connection or connections to the bonding network, isolated or common return behavior where applicable, protective conductors, surge paths and measurement points. Verify that every connected load is compatible with the proposed arrangement and that field modifications do not introduce unintended parallel paths. Cable polarity, labels, isolation devices and test procedures belong in the same drawing set. ETSI defines the -48 V ICT interface and related earthing references, but project-specific conductor sizing, fault protection and local installation requirements still need engineering review.
Within the broader Telecom DC Power Engineering workflow, this article focuses on -48V telecom grounding: document the DC return and bonding arrangement at the interface between the telecom power plant and ICT equipment. Confirm existing earthing diagram and the evidence for the offered product before final engineering approval.
Project inputs that narrow the product family
Document the DC return and bonding arrangement at the interface between the telecom power plant and ICT equipment. Start with the operating requirement and installation boundary, then separate system requirements from product claims so each supplier knows which evidence must accompany the offered configuration.

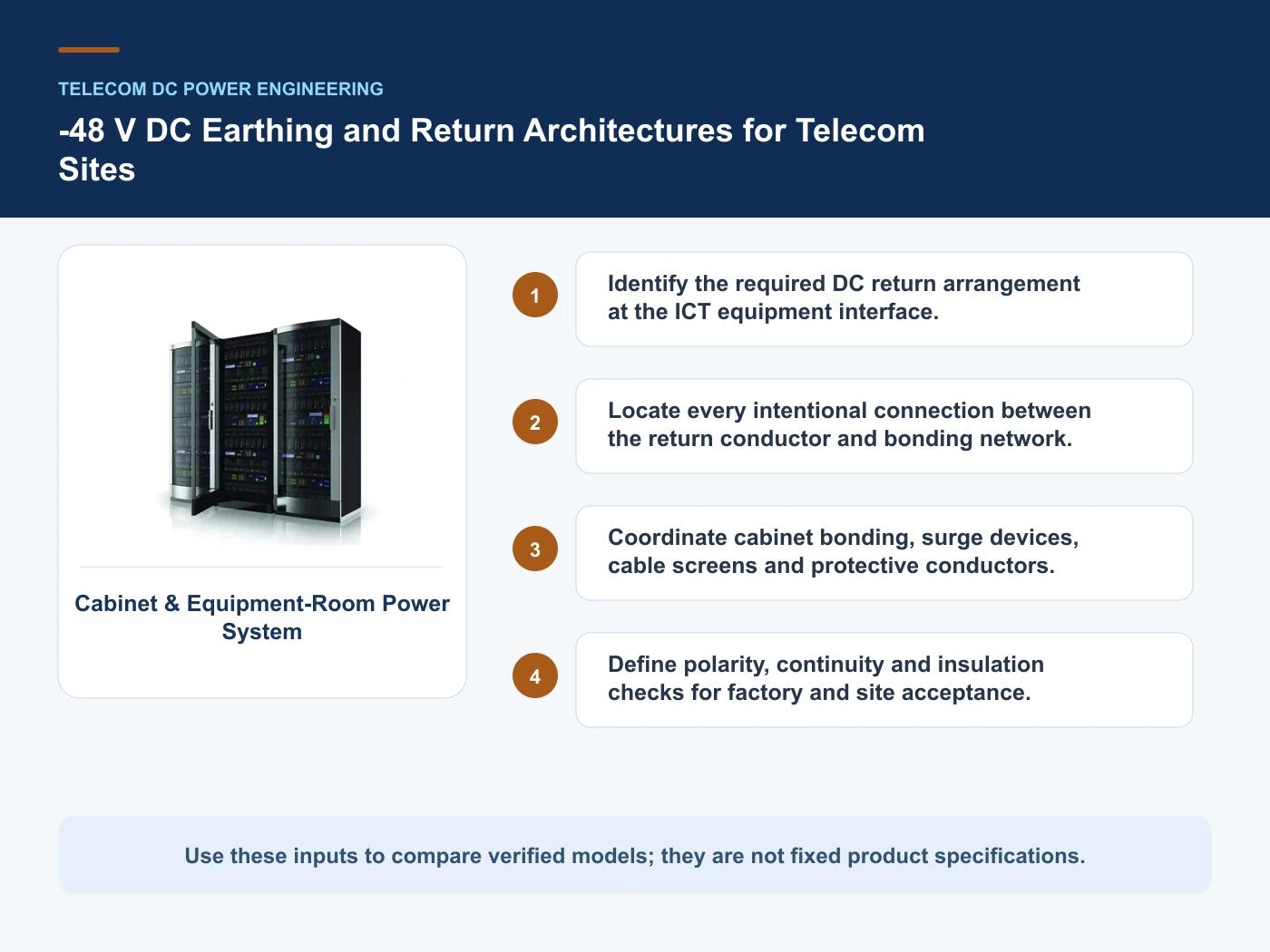

- Identify the required DC return arrangement at the ICT equipment interface.
- Locate every intentional connection between the return conductor and bonding network.
- Coordinate cabinet bonding, surge devices, cable screens and protective conductors.
- Define polarity, continuity and insulation checks for factory and site acceptance.
Identify the required DC return arrangement at the ICT equipment interface
Capture Existing earthing diagram, then use Isolated DC return as a practical comparison point: The return has a controlled single connection to the bonding network. Before approval, verify this point: Unintended parallel paths and insulation monitoring.
Locate every intentional connection between the return conductor and bonding network
Capture Required DC return architecture, then use Common DC return as a practical comparison point: The project permits multiple return-to-bonding connections. Before approval, verify this point: Equipment compatibility and circulating-current risk.
Coordinate cabinet bonding, surge devices, cable screens and protective conductors
Capture ICT equipment interface data, then use Mixed or unclear legacy site as a practical comparison point: Installed bonding does not match available drawings. Before approval, verify this point: Survey, temporary controls and approved correction plan.
Define polarity, continuity and insulation checks for factory and site acceptance
Capture Bonding conductor schedule, then use Isolated DC return as a practical comparison point: The return has a controlled single connection to the bonding network. Before approval, verify this point: Unintended parallel paths and insulation monitoring.
Relevant products from our communications portfolio
The products below connect the -48V telecom grounding decision to real catalogue families and verified site photography. They are starting points, not a claim that every configuration described here is a standard stock item; confirm model, interface, rating, drawing and testing scope with the project team.
- Cabinet-Type Telecom DC Power System (HJ-DYZ-600) — use this product page as a configuration reference when you identify the required DC return arrangement at the ICT equipment interface. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- DC Distribution Cabinet — use this product page as a configuration reference when you locate every intentional connection between the return conductor and bonding network. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Enclosed Surge Protective Device (SPD) — use this product page as a configuration reference when you coordinate cabinet bonding, surge devices, cable screens and protective conductors. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Low-Voltage Switchgear Assembly — use this product page as a configuration reference when you define polarity, continuity and insulation checks for factory and site acceptance. Confirm the offered model, interfaces, drawings and available evidence before quotation.
For adjacent configurations, browse Telecom Power & Site Energy and compare those options against the -48V telecom grounding inputs above, including existing earthing diagram.
Selection boundaries to verify
This table connects -48 V plant retrofit, rectifiers, recharge, disconnect logic, protection, distribution and equipment interfaces to the decision on -48V telecom grounding. It is a decision aid rather than a universal performance table: exact capacity, environmental class, electrical or optical limits and certifications must come from the selected model, applicable project documents and verifiable test evidence.
| Option or input | When it fits | What must be verified |
|---|---|---|
| Isolated DC return | The return has a controlled single connection to the bonding network | Unintended parallel paths and insulation monitoring |
| Common DC return | The project permits multiple return-to-bonding connections | Equipment compatibility and circulating-current risk |
| Mixed or unclear legacy site | Installed bonding does not match available drawings | Survey, temporary controls and approved correction plan |
Reference point: ETSI EN 300 132-2: Power supply interface at the input of ICT equipment — -48 V direct current and ITU-T L.1210: Sustainable power-feeding solutions for 5G network frame the terminology or method used for this -48V telecom grounding comparison. They do not approve a product configuration; apply the edition named by the contract and local authority.
A practical product-selection workflow
- Step 1: Survey the existing bonding network, DC return connections and cabinet continuity points. Record Existing earthing diagram as an explicit input. Unintended parallel paths and insulation monitoring.
- Step 2: Confirm the intended architecture against the ICT load and power-system documentation. Record Required DC return architecture as an explicit input. Equipment compatibility and circulating-current risk.
- Step 3: Update the earthing drawing, conductor schedule, labels and surge interfaces as one package. Record ICT equipment interface data as an explicit input. Survey, temporary controls and approved correction plan.
- Step 4: Perform the approved polarity, continuity and insulation checks and retain the results. Record Bonding conductor schedule as an explicit input. Unintended parallel paths and insulation monitoring.
Common mistakes to avoid
- Treating positive earth as a complete earthing and bonding specification.
- Allowing cable screens or cabinet links to create undocumented return paths.
- Testing continuity without verifying polarity and the intended single or multiple connection points.
What to include in the RFQ or design input
For -48V telecom grounding, a complete request reduces back-and-forth and prevents a catalogue image from being mistaken for a verified configuration. Record the following fields, identify which values are mandatory or provisional and attach route, interface or layout drawings where relevant.
- Existing earthing diagram
- Required DC return architecture
- ICT equipment interface data
- Bonding conductor schedule
- Surge protection arrangement
- Cable screen treatment
- Factory and site test requirements
Questions engineers and buyers ask
How should isolated dc return be evaluated for -48V telecom grounding?
Use the return has a controlled single connection to the bonding network as the operating context, record existing earthing diagram, and verify unintended parallel paths and insulation monitoring for the exact offered configuration.
Which project input can change the -48V telecom grounding decision?
Identify the required DC return arrangement at the ICT equipment interface. Recheck that decision when required dc return architecture or ict equipment interface data changes.
Sources and standards
These sources support the method and vocabulary used in this guide. They are not a substitute for project requirements or evidence tied to the exact -48V telecom grounding configuration.
- ETSI EN 300 132-2: Power supply interface at the input of ICT equipment — -48 V direct current (V2.8.1, 2024). Use it to verify the terminology and scope relevant to -48V telecom grounding; the source does not certify a specific offered product.
- ITU-T L.1210: Sustainable power-feeding solutions for 5G network (In force; reviewed 2026-10-16). Use it to verify the terminology and scope relevant to -48V telecom grounding; the source does not certify a specific offered product.
- IEC 61439-1: Low-voltage switchgear and controlgear assemblies — General rules (2020, Ed. 3). Use it to verify the terminology and scope relevant to -48V telecom grounding; the source does not certify a specific offered product.
Source review: Links and cited editions for -48V telecom grounding were checked on 2026-10-16. Confirm the edition adopted by the project contract and the authority having jurisdiction.
Related guidance
Brownfield -48 V Telecom Power Retrofit: Capacity, Interfaces and Cutover Planning • Telecom DC Distribution Protection: Breakers, Fuses, Cable Ampacity and Selectivity • Telecom Rectifier Module Replacement: Voltage Window, Shelf Fit, Protocol and Derating
Prepare a -48V telecom grounding configuration for review
For a project review, provide existing earthing diagram, required dc return architecture, ict equipment interface data, bonding conductor schedule. The response can separate standard options, customization points and information still required before quotation.
