House communications, power and battery equipment in a serviceable outdoor enclosure.
A double-wall outdoor fan cabinet in 10U, 12U and 14U formats, with 19-inch rails and selectable depth for compact wall- or pole-mounted communications equipment.
The body uses 1.2 mm galvanized steel and a front door. A 90 CFM, 19 W AC fan and door-switched 5 W AC220 V LED lamp are listed. Wall and pole brackets use 2.0 mm galvanized steel, with a 700 mm wall-bracket length described.
The configuration also identifies three-point locking, distribution and environmental monitoring provisions. Rack space occupied by these modules must be shown in the equipment layout.

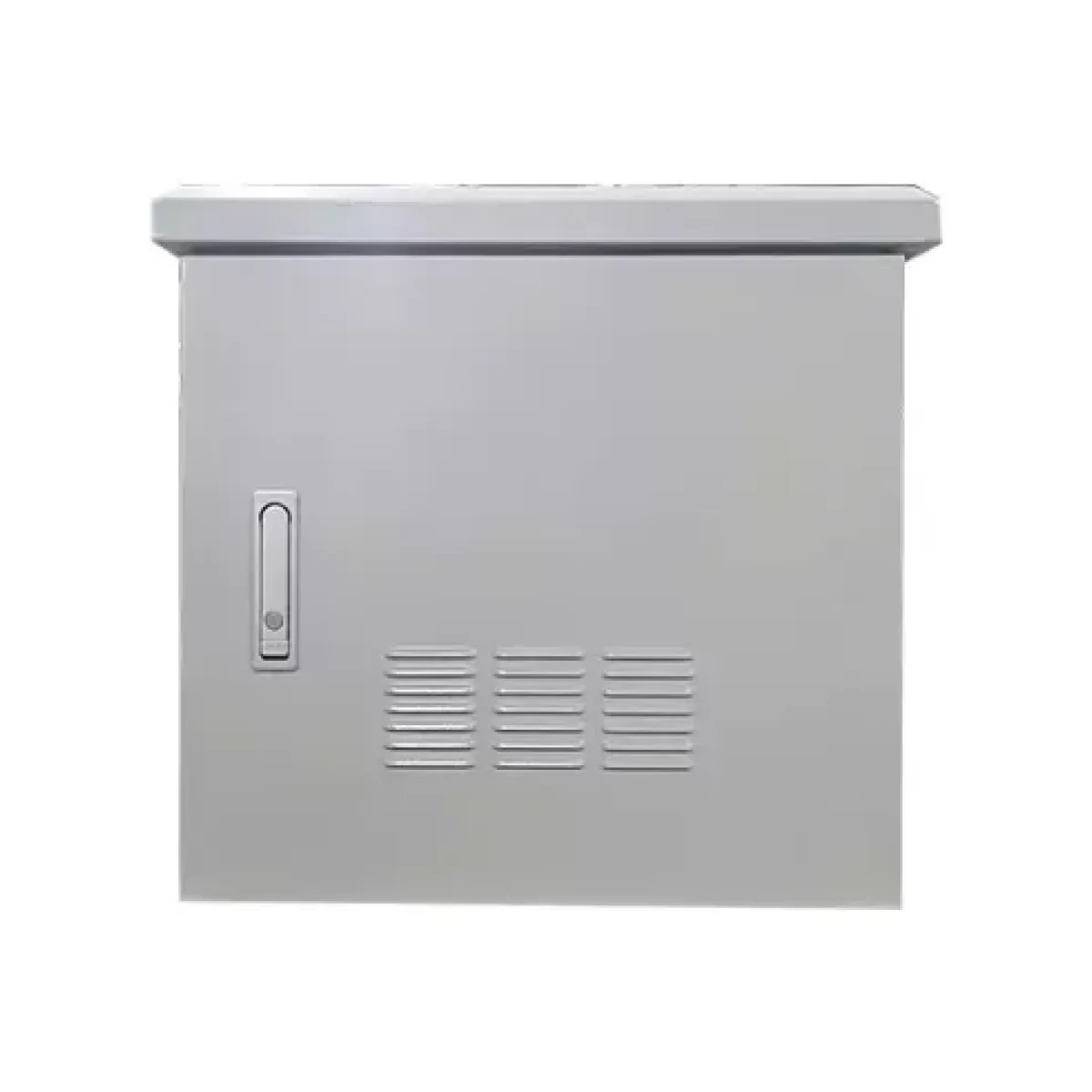

The HJ-OWVD 10–14U double-wall fan-cooled outdoor telecom cabinet combines a compact rack envelope with a double-wall enclosure structure. It is suited to equipment layouts where front service access and a planned fan path are needed within a small installation area.
The 10U, 12U and 14U versions are listed at 600, 700 and 800 mm high. Width is 600 mm, with 450 or 600 mm depth options. Double-wall construction should not be taken to imply a particular insulation thickness unless it is confirmed in the order specification.
Choose the height from installed units plus distribution and monitor space. Check the equipment temperature requirement against ambient and ventilation conditions. Confirm bracket selection, fixings and complete installed weight for the actual wall or pole.
Huijue Group can assess OEM or private-label HJ-OWVD builds and modifications developed from customer drawings or samples. Wall construction, tooling, thermal and enclosure testing, quantities and delivery scope require confirmation.
| Product Model | HJ-OWVD10-01 | HJ-OWVD10-02 | HJ-OWVD12-01 | HJ-OWVD12-02 | HJ-OWVD14-01 | HJ-OWVD14-02 |
|---|---|---|---|---|---|---|
| Rack Capacity | 10U, 19″ rails | 12U, 19″ rails | 14U, 19″ rails | |||
| Dimensions (H×W×D mm) | 600mm-600mm-450mm | 600mm-600mm-600mm | 700mm-600mm-450mm | 700mm-600mm-600mm | 800mm-600mm-450mm | 800mm-600mm-600mm |
| Main Configuration | Double-wall structure, 1.2 mm galvanized steel, front door, wall-mount, carton packaging | |||||
| Thermal Control | AC fan, size 120×120×38 mm; airflow 90 CFM, power 19 W | |||||
| Wall Mount Bracket | 2.0 mm galvanized steel, length 700 mm | |||||
| Pole Mount Bracket | 2.0 mm galvanized steel | |||||
| Lighting | AC220V, 5 W LED lamp, with door switch | |||||
| Shelf | 1.2 mm cold-rolled steel sheet, load capacity 50 kg | |||||
| L-shaped Bracket | 1.5 mm cold-rolled steel sheet | |||||
| Lock | Anti-theft design, outdoor waterproof type, zinc alloy, three-point locking | |||||
| Power Distribution Unit | AC circuit breakers: input 32A/2P×1, output 10A/1P×3, SPD 40 kA×1 | |||||
| Monitoring Unit | 1. Supports smoke, door contact, water leak, infrared and other sensors; environmental data viewable via connected platform; standard 1U rack mount; 2. Software for viewing collected data and alarms | |||||
| Others | Customizable on request |
Compact outdoor communications and network nodes requiring double-wall construction and front access.
Provide the actual climate, contaminants and solar conditions. No fixed ingress or temperature rating is established by this source record.
Buyer Questions
Answers specific to 10–14U Double-Wall Fan-Cooled Outdoor Telecom Cabinet selection, configuration and purchasing.
The record identifies double-wall construction but does not specify a core thickness here. Request a sectional drawing if insulation performance matters.
No. The range includes 450 and 600 mm depth variants. Confirm the selected model against equipment and cable clearance.
The source's 50 kg value is a shelf rating. The complete mounted assembly requires its own structural review.
Use the deployment context to narrow the configuration before comparing dimensions, capacities and options.
House communications, power and battery equipment in a serviceable outdoor enclosure.
Protect distributed equipment while maintaining cable entry and service access.
Coordinate cabinet capacity, thermal management and equipment zoning.
Fit protected infrastructure into space-constrained or visually sensitive locations.
Before quotation: confirm capacity, interfaces, installation environment, power conditions, quantity and required options.
