Telecom base stations
House communications, power and battery equipment in a serviceable outdoor enclosure.
A single-wall galvanized-steel cabinet range with 10U, 12U and 14U rails, two depth options and wall or pole mounting components for small outdoor network installations.

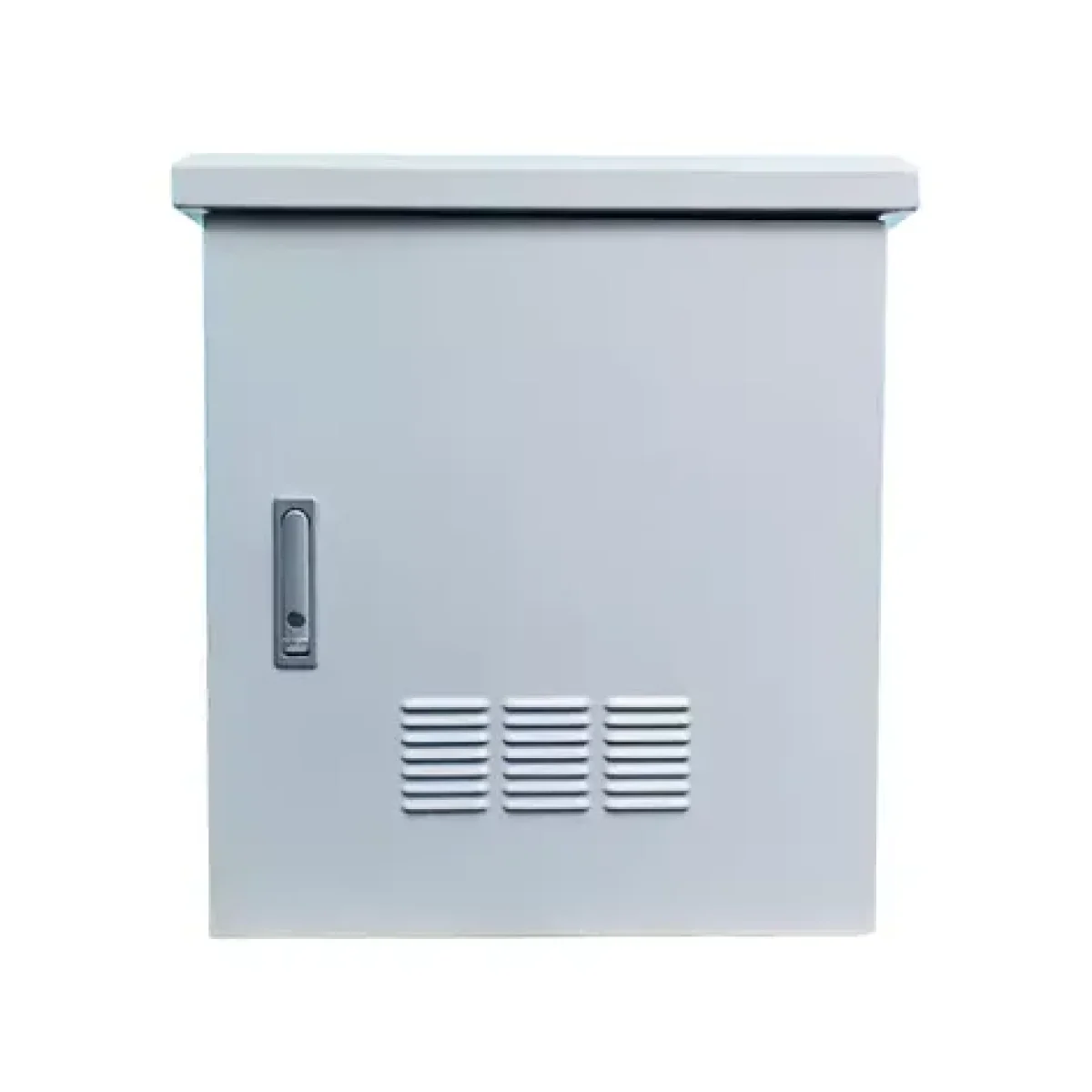

The 10–14U single-wall fan-cooled outdoor telecom cabinet provides a compact metal enclosure for network equipment and supporting distribution. The HJ-OWVS range lets the rack height and equipment depth be selected separately, which is useful when a shallow roadside or wall-mounted installation has limited clearance.
10U, 12U and 14U versions use 19-inch rails. The source lists heights of 600, 700 and 800 mm respectively, a 600 mm width and either 450 or 600 mm depth.
Choose depth from equipment plus connector and cable-bend space. Confirm wall or pole support against installed mass. The example distribution includes 32 A input, three 10 A outputs and 40 kA surge protection; check circuit suitability and monitoring options against the project electrical design.
Huijue Group can review OEM HJ-OWVS variants, private labels and sample- or drawing-based mounting or entry changes. Engineering feasibility, tooling, fan/enclosure tests, quantities and delivery scope need confirmation.
Specify 10U/12U/14U, 450/600 mm depth, mounting type, equipment weight, heat load, power circuits and required sensors.
| Product Model | HJ-OWVS10-01 | HJ-OWVS10-02 | HJ-OWVS12-01 | HJ-OWVS12-02 | HJ-OWVS14-01 | HJ-OWVS14-02 |
|---|---|---|---|---|---|---|
| Rack Capacity | 10U, 19″ rails | 12U, 19″ rails | 14U, 19″ rails | |||
| Dimensions (H×W×D mm) | 600mm-600mm-450mm | 600mm-600mm-600mm | 700mm-600mm-450mm | 700mm-600mm-600mm | 800mm-600mm-450mm | 800mm-600mm-600mm |
| Main Configuration | Single-wall structure, 1.2 mm galvanized steel, front door, wall-mount, carton packaging | |||||
| Thermal Control | AC fan, size 120×120×38 mm; airflow 90 CFM, power 19 W | |||||
| Wall Mount Bracket | 2.0 mm galvanized steel, length 700 mm | |||||
| Pole Mount Bracket | 2.0 mm galvanized steel | |||||
| Lighting | AC220V, 5 W LED lamp, with door switch | |||||
| Shelf | 1.2 mm cold-rolled steel sheet, load capacity 50 kg | |||||
| L-shaped Bracket | 1.5 mm cold-rolled steel sheet | |||||
| Lock | Anti-theft design, outdoor waterproof type, zinc alloy, three-point locking | |||||
| Power Distribution Unit | AC circuit breakers: input 32A/2P×1, output 10A/1P×3, SPD 40 kA×1 | |||||
| Monitoring Unit | 1. Supports smoke, door contact, water leak, infrared and other sensors; environmental data viewable via connected platform; standard 1U rack mount; 2. Software for viewing collected data and alarms | |||||
| Others | Customizable on request |
Confirm rain, dust, solar exposure and fan maintenance conditions. The source does not assign a specific ingress rating to this record.
Buyer Questions
Answers specific to 10–14U Single-Wall Fan-Cooled Outdoor Telecom Cabinet selection, configuration and purchasing.
No. It applies to the listed shelf. Cabinet, rails, mounting brackets and site support require assessment for the complete load.
Add equipment depth, rear connectors and cable bend clearance, then check door clearance and the mounting location.
Monitoring is described in the source configuration. Confirm the supplied module, sensors, rack allocation and software/platform scope in the quotation.
Use the deployment context to narrow the configuration before comparing dimensions, capacities and options.
House communications, power and battery equipment in a serviceable outdoor enclosure.
Protect distributed equipment while maintaining cable entry and service access.
Coordinate cabinet capacity, thermal management and equipment zoning.
Fit protected infrastructure into space-constrained or visually sensitive locations.
Before quotation: confirm capacity, interfaces, installation environment, power conditions, quantity and required options.
