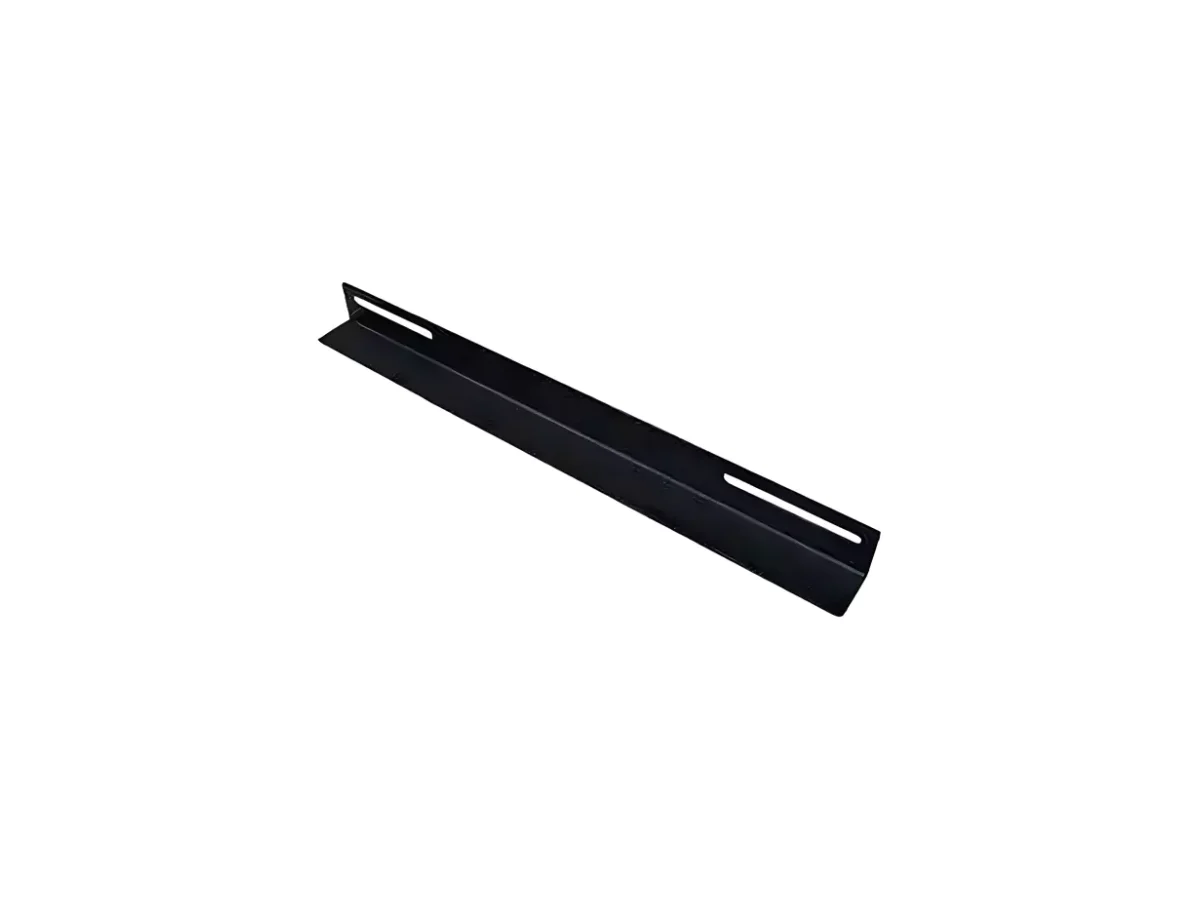

An adjustable L-shaped steel equipment support with bolted fixing, selected by post spacing, bearing length and load for cabinets from 450 to 1200 mm deep.
L-Shaped Rack Guide Rail provides a side bearing surface for equipment inside a cabinet. It is useful when the mounting plan needs longitudinal support rather than a full-width shelf, provided the equipment and fixing arrangement are suitable.
The reinforced L-bend and bolted mounting allow the support to be positioned against the cabinet posts. This rail should be assessed with the equipment base and attachment method; it is not automatically equivalent to a device manufacturer’s sliding rail kit.
Check the distance between front and rear posts, required bearing length and equipment weight. Identify whether the quoted load applies to the supplied rail assembly and how the equipment distributes force onto it. Confirm restraint against movement and whether supplementary brackets or a shelf are needed.
Huijue Group can evaluate OEM support rails, private-label supply and sample- or drawing-based hole patterns. Profile length, reinforcement, tooling, load verification, order quantity and delivery scope need engineering confirmation.
Provide cabinet depth, post spacing, equipment footprint and mass, required rail length, bearing and fixing details, finish and rail-set quantities.
| Material | Cold-rolled steel |
|---|---|
| Plate thickness | 1.2–2.0 mm |
| Applicable cabinet depth | 450–1200 mm |
| Maximum load | ≥80 kg |
| Operating temperature | -5°C to 55°C |
For suitable equipment-support arrangements in network cabinets, server racks and telecom enclosures, including nonstandard equipment with an approved bearing and restraint design.
Indoor rack or protected-cabinet installation is described, with operation from -5°C to 55°C. Specify finish requirements for the actual cabinet environment.
Buyer Questions
Answers specific to L-Shaped Rack Guide Rail selection, configuration and purchasing.
The verified product is an L-shaped support rail. A server needing slide-out access or a specific mounting kit requires separate compatibility confirmation.
The source does not establish that interpretation. Confirm the rated supply arrangement, mounting details and load distribution before using the figure.
Provide both cabinet outer depth and front-to-rear post spacing, plus the equipment bearing length. The internal dimensions determine physical fit.
