Direct answer
Box capacity should be derived from the served fibres and internal functions, not chosen as the next round number. Count feeder fibres, distribution or drop ports, splitter inputs and outputs, splices, pass-through fibres and reserved growth separately. Then confirm adapter arrangement, splice-tray capacity, bend-controlled storage, cable entries, connector access and mounting. A nominal 24-core box may not support every combination of 24 terminations and splitters.
Within the broader ODN & FTTx Design workflow, this article focuses on fiber distribution box capacity: size a distribution box from live, spare, splice and splitter functions. Confirm feeder/distribution fibres and the evidence for the offered product before final engineering approval.
Inputs required before any calculation
Size a distribution box from live, spare, splice and splitter functions. Start with the operating requirement and installation boundary, then separate system requirements from product claims so each supplier knows which evidence must accompany the offered configuration.
- Create a port and splice schedule.
- Separate termination capacity from splice-tray capacity.
- Allocate physical space for splitters and service loops.
- Check entry direction, mounting and technician access.
Create a port and splice schedule
Capture Feeder/distribution fibres, then use 8/16 core as a practical comparison point: Small building or local branch. Before approval, verify this point: Confirm actual splitter and cable-entry need.
Separate termination capacity from splice-tray capacity
Capture Adapter ports, then use 24 core as a practical comparison point: Medium distribution node. Before approval, verify this point: Internal layout determines usable combination.
Allocate physical space for splitters and service loops
Capture Splice count, then use 48 core as a practical comparison point: Larger served zone or growth reserve. Before approval, verify this point: More capacity also needs routing and maintenance space.
Check entry direction, mounting and technician access
Capture Splitter type, then use 8/16 core as a practical comparison point: Small building or local branch. Before approval, verify this point: Confirm actual splitter and cable-entry need.
A traceable sizing and verification workflow

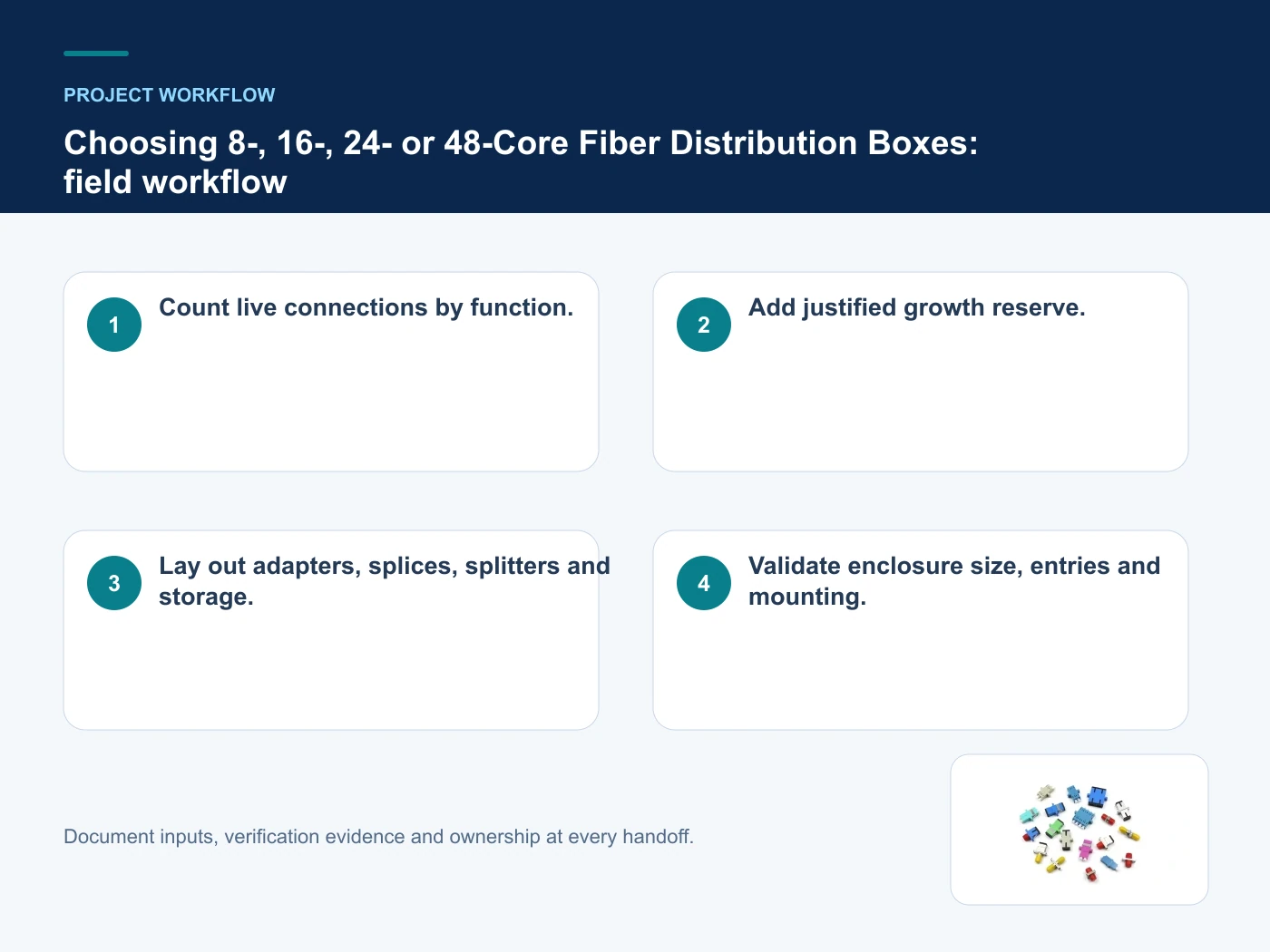

- Step 1: Count live connections by function. Record Feeder/distribution fibres as an explicit input. Confirm actual splitter and cable-entry need.
- Step 2: Add justified growth reserve. Record Adapter ports as an explicit input. Internal layout determines usable combination.
- Step 3: Lay out adapters, splices, splitters and storage. Record Splice count as an explicit input. More capacity also needs routing and maintenance space.
- Step 4: Validate enclosure size, entries and mounting. Record Splitter type as an explicit input. Confirm actual splitter and cable-entry need.
Calculation boundaries and acceptance limits
This table connects splitting, distribution, splicing, termination, capacity planning and optical-loss control to the decision on fiber distribution box capacity. It is a decision aid rather than a universal performance table: exact capacity, environmental class, electrical or optical limits and certifications must come from the selected model, applicable project documents and verifiable test evidence.
| Option or input | When it fits | What must be verified |
|---|---|---|
| 8/16 core | Small building or local branch | Confirm actual splitter and cable-entry need |
| 24 core | Medium distribution node | Internal layout determines usable combination |
| 48 core | Larger served zone or growth reserve | More capacity also needs routing and maintenance space |
Reference point: ITU-T L.208: Requirements for passive optical nodes — distribution box and ITU-T L.250: Topologies for optical access networks frame the terminology or method used for this fiber distribution box capacity comparison. They do not approve a product configuration; apply the edition named by the contract and local authority.
Relevant products from our communications portfolio
The products below connect the fiber distribution box capacity decision to real catalogue families and verified site photography. They are starting points, not a claim that every configuration described here is a standard stock item; confirm model, interface, rating, drawing and testing scope with the project team.
- 24-Core SMC Fiber Distribution Box — use this product page as a configuration reference when you create a port and splice schedule. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Plug-In Type Optical Splitter Series — use this product page as a configuration reference when you separate termination capacity from splice-tray capacity. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Fiber Optic Adapter — use this product page as a configuration reference when you allocate physical space for splitters and service loops. Confirm the offered model, interfaces, drawings and available evidence before quotation.
For adjacent configurations, browse ODN & Fiber Distribution and compare those options against the fiber distribution box capacity inputs above, including feeder/distribution fibres.
What to include in the RFQ or design input
For fiber distribution box capacity, a complete request reduces back-and-forth and prevents a catalogue image from being mistaken for a verified configuration. Record the following fields, identify which values are mandatory or provisional and attach route, interface or layout drawings where relevant.
- Feeder/distribution fibres
- Adapter ports
- Splice count
- Splitter type
- Cable entries
- Mounting/environment
Common mistakes to avoid
- Equating core count with available adapter ports.
- Filling every position without service reserve.
- Ignoring connector boot and bend space.
Questions engineers and buyers ask
Can fiber distribution box capacity be sized from a nominal rating alone?
No. The calculation must include feeder/distribution fibres, adapter ports, splice count plus applicable margins, derating and acceptance limits.
Which result should appear in the RFQ?
State the design inputs, calculation method, selected value, reserve or margin and evidence required from the offered configuration.
Sources and standards
For fiber distribution box capacity, the references below define relevant terminology, scope or test methods. ITU-T L.208: Requirements for passive optical nodes — distribution box is one documented boundary for this topic; neither a standards catalogue page nor a category page proves certification of the offered product. Apply the edition adopted by the contract, destination market and authority having jurisdiction.
- ITU-T L.208: Requirements for passive optical nodes — distribution box (08/2019). Use it to verify the terminology and scope relevant to fiber distribution box capacity; the source does not certify a specific offered product.
- ITU-T L.250: Topologies for optical access networks (01/2024). Use it to verify the terminology and scope relevant to fiber distribution box capacity; the source does not certify a specific offered product.
Source review: Links and cited editions for fiber distribution box capacity were checked on 2026-10-15. Confirm the edition adopted by the project contract and the authority having jurisdiction.
