Direct answer
Insertion loss quantifies how much optical power is lost through a component or end-to-end link. Optical return loss describes the ratio related to total reflected power returning toward the source; larger ORL values generally mean less returned power. Event reflectance on an OTDR is related but not identical to link ORL. A test report should name the measurement method, wavelength, reference plane and limit instead of using the word loss without context.
Within the broader Fiber Testing & Maintenance workflow, this article focuses on insertion loss vs return loss: distinguish transmitted-power loss from reflected-power behavior. Confirm metric required and the evidence for the offered product before final engineering approval.

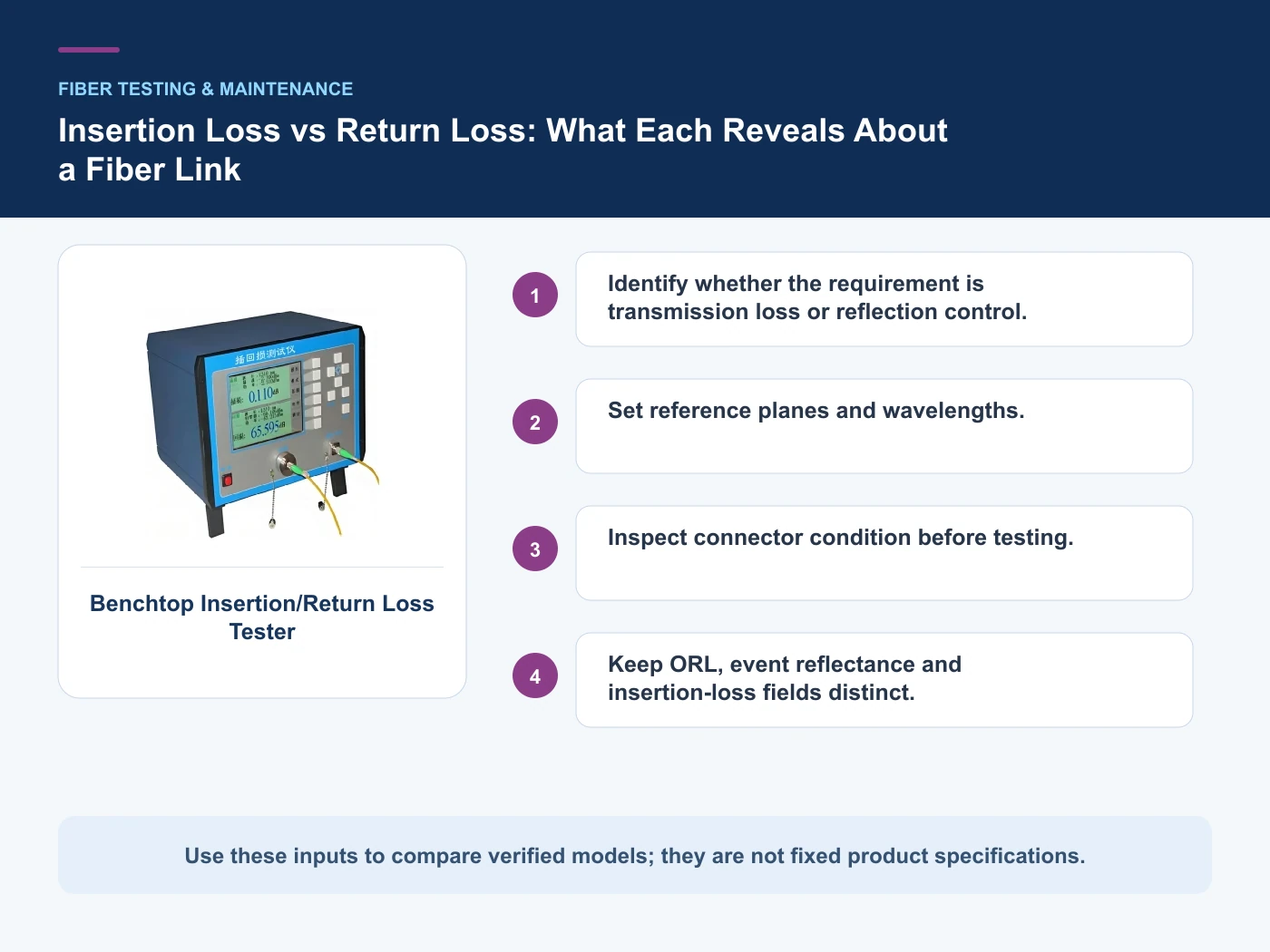

Decisions that separate the options
Distinguish transmitted-power loss from reflected-power behavior. Start with the operating requirement and installation boundary, then separate system requirements from product claims so each supplier knows which evidence must accompany the offered configuration.
- Identify whether the requirement is transmission loss or reflection control.
- Set reference planes and wavelengths.
- Inspect connector condition before testing.
- Keep ORL, event reflectance and insertion-loss fields distinct.
Identify whether the requirement is transmission loss or reflection control
Capture Metric required, then use Insertion loss as a practical comparison point: Power transmitted through component/link. Before approval, verify this point: Reported as loss between defined reference planes.
Set reference planes and wavelengths
Capture Wavelength, then use Optical return loss as a practical comparison point: Aggregate reflected power toward source. Before approval, verify this point: A higher numerical ORL represents lower returned power.
Inspect connector condition before testing
Capture Reference method, then use Event reflectance as a practical comparison point: A specific reflective event on a trace. Before approval, verify this point: Do not label it as whole-link ORL.
Keep ORL, event reflectance and insertion-loss fields distinct
Capture Connector interfaces, then use Insertion loss as a practical comparison point: Power transmitted through component/link. Before approval, verify this point: Reported as loss between defined reference planes.
Where the options diverge
This table connects inspection, optical-loss measurement, OTDR analysis, acceptance records and maintenance workflow to the decision on insertion loss vs return loss. It is a decision aid rather than a universal performance table: exact capacity, environmental class, electrical or optical limits and certifications must come from the selected model, applicable project documents and verifiable test evidence.
| Option or input | When it fits | What must be verified |
|---|---|---|
| Insertion loss | Power transmitted through component/link | Reported as loss between defined reference planes |
| Optical return loss | Aggregate reflected power toward source | A higher numerical ORL represents lower returned power |
| Event reflectance | A specific reflective event on a trace | Do not label it as whole-link ORL |
Reference point: IEC 61280-4-2: Installed single-mode cabling attenuation and optical return loss and ITU-T G.650.3: Test methods for installed single-mode fibre cable links frame the terminology or method used for this insertion loss vs return loss comparison. They do not approve a product configuration; apply the edition named by the contract and local authority.
Relevant products from our communications portfolio
The products below connect the insertion loss vs return loss decision to real catalogue families and verified site photography. They are starting points, not a claim that every configuration described here is a standard stock item; confirm model, interface, rating, drawing and testing scope with the project team.
- Benchtop Insertion/Return Loss Tester — use this product page as a configuration reference when you identify whether the requirement is transmission loss or reflection control. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Handheld Optical Power Meter — use this product page as a configuration reference when you set reference planes and wavelengths. Confirm the offered model, interfaces, drawings and available evidence before quotation.
- Fiber Optic Adapter — use this product page as a configuration reference when you inspect connector condition before testing. Confirm the offered model, interfaces, drawings and available evidence before quotation.
For adjacent configurations, browse Fiber Splicing, Cleaning & Test Tools and compare those options against the insertion loss vs return loss inputs above, including metric required.
A comparison workflow that avoids label-based selection
- Step 1: Read the contract or equipment requirement. Record Metric required as an explicit input. Reported as loss between defined reference planes.
- Step 2: Choose method and establish references. Record Wavelength as an explicit input. A higher numerical ORL represents lower returned power.
- Step 3: Measure at specified wavelengths. Record Reference method as an explicit input. Do not label it as whole-link ORL.
- Step 4: Report units, limits and uncertainty notes. Record Connector interfaces as an explicit input. Reported as loss between defined reference planes.
Common mistakes to avoid
- Calling ORL a negative insertion-loss result.
- Comparing values from different reference methods.
- Ignoring dirty or mismatched connectors.
What to include in the RFQ or design input
For insertion loss vs return loss, a complete request reduces back-and-forth and prevents a catalogue image from being mistaken for a verified configuration. Record the following fields, identify which values are mandatory or provisional and attach route, interface or layout drawings where relevant.
- Metric required
- Wavelength
- Reference method
- Connector interfaces
- Limit source
- Report format
Questions engineers and buyers ask
Which option is better for insertion loss vs return loss?
There is no universal winner. Choose the option that satisfies identify whether the requirement is transmission loss or reflection control. and set reference planes and wavelengths., then verify the offered model and project conditions.
Can price alone decide this comparison?
No. Compare installed interfaces, protection, testing, maintenance and expansion obligations as well as unit price.
Sources and standards
For insertion loss vs return loss, the references below define relevant terminology, scope or test methods. IEC 61280-4-2: Installed single-mode cabling attenuation and optical return loss is one documented boundary for this topic; neither a standards catalogue page nor a category page proves certification of the offered product. Apply the edition adopted by the contract, destination market and authority having jurisdiction.
- IEC 61280-4-2: Installed single-mode cabling attenuation and optical return loss (2024, Ed.3). Use it to verify the terminology and scope relevant to insertion loss vs return loss; the source does not certify a specific offered product.
- ITU-T G.650.3: Test methods for installed single-mode fibre cable links (08/2017). Use it to verify the terminology and scope relevant to insertion loss vs return loss; the source does not certify a specific offered product.
- FOA: Fiber optic testing (Technical reference accessed 2026-10-15). Use it to verify the terminology and scope relevant to insertion loss vs return loss; the source does not certify a specific offered product.
Source review: Links and cited editions for insertion loss vs return loss were checked on 2026-10-15. Confirm the edition adopted by the project contract and the authority having jurisdiction.
Related guidance
Fiber Testing and Acceptance Guide: OTDR, Optical Power, Loss and Connector Quality • How Launch and Receive Fibers Change OTDR Measurements • FTTH and ODN Acceptance Testing Workflow Before Service Activation
Prepare a insertion loss vs return loss configuration for review
Send metric required, wavelength, reference method, connector interfaces, together with quantity and delivery destination. We will help narrow the relevant product family and identify the drawings or test evidence needed for quotation.
